Self Aligning Ball Bearings 2317-KM C/4

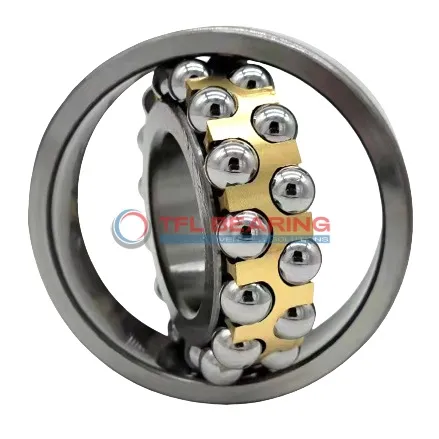

Self Aligning Ball Bearings 2317-KM C/4

The 2317-KM C/4 is a self-aligning ball bearing with an 85mm tapered bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 31500 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and brass cage provide durability, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial fans or conveyor systems where alignment flexibility is needed.

Weighing 6.8kg, it’s built to handle tough conditions while maintaining stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2317-KM C/4
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 115 mm
  • Internal Diameter On Outer Ring 153.5 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 11475 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 6.8 kg
  • Price（$） 728.35
Self Aligning Ball Bearings 2317-KM C/4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2317-KM C/4 Bearing

2317-KM C/4 Bearing is designed with a double-row ball construction, offering excellent radial load capacity up to 31500 lbf.
Its chrome steel rings and balls ensure durability and resistance to wear in demanding applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a maximum speed of 4,800 rpm, it provides reliable performance in various industrial settings.

2317-KM C/4 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its tapered bore design ensures secure fitting and easy installation on shafts.

The open seal type allows for easy lubrication, maintaining smooth operation over time.
Weighing 6.8 kg, it balances strength and practicality for heavy-duty use.

Application

Industrial Uses of 2317-KM C/4 Bearing
2317-KM C/4 Bearing is commonly used in heavy machinery like conveyor systems and industrial mixers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for demanding environments.

Where Is 2317-KM C/4 Bearing Used?
In automotive applications, 2317-KM C/4 Bearing can be found in gearboxes and drivetrains, where its taper bore provides a secure fit. The brass cage enhances durability, ensuring long service life even under constant vibration.

Designed for Versatility: 2317-KM C/4 Bearing
For automation equipment, 2317-KM C/4 Bearing supports robotic arms and assembly lines, thanks to its high dynamic load capacity. The open seal design allows for easy relubrication, maintaining smooth operation over time.

Light-Duty vs Heavy-Duty: Best Uses for 2317-KM C/4 Bearing
In light-duty applications like fans, 2317-KM C/4 Bearing offers quiet and efficient performance. For heavy-duty uses such as mining equipment, its chrome steel construction handles extreme loads without compromising reliability.
