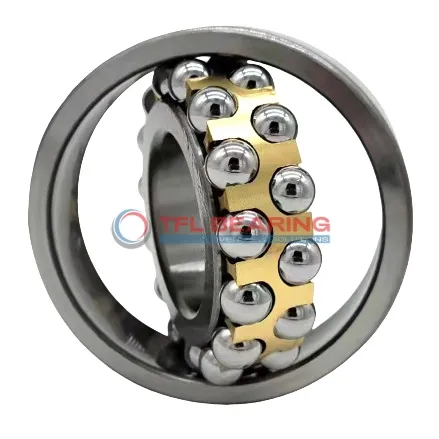

Self Aligning Ball Bearings 2315-M-C3

Brand: TFL Bearing Interchangeable: SKF 2315-M-C3 75 mm × 160 mm × 55 mm Metric Open
Part number: 2315-M-C3
Self Aligning Ball Bearings 2315-M-C3
In Stock
US$451.68 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width55 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring97.8 mm
Internal Diameter On Outer Ring136.4 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load27,900 lbf
Static Radial Load9,675 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight4.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2315-M-C3 is a self-aligning ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 27900 lbf and runs smoothly at speeds up to 5600 RPM.

The brass cage adds durability, while the open seal allows for easy lubrication. It operates reliably in temperatures from -30°C to 110°C, making it suitable for varied environments.

With a C3 radial clearance, it accommodates slight misalignments, ideal for heavy machinery or conveyor systems. Weighing 4.7kg, it’s robust yet manageable for industrial use.

Compliant with RoHS and REACH standards, this bearing is interchangeable with SKF models, offering a dependable replacement option.

Features

Performance Features of 2315-M-C3 Bearing

2315-M-C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 27900 lbf, making it suitable for heavy-duty applications.

The double-row design ensures stability and smooth operation even under uneven loads.
Brass cage maintains ball alignment, reducing friction and extending service life.

With a maximum speed of 5,600 rpm, it balances performance and durability.
The C3 radial clearance allows for thermal expansion in high-temperature environments.

2315-M-C3 Bearing operates efficiently in temperatures from -30° to 110°C.
Its open design simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 2315-M-C3 Bearing
2315-M-C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for continuous operation.

Where Is 2315-M-C3 Bearing Used?
In automotive applications, 2315-M-C3 Bearing fits well in gearboxes and drivetrains, handling radial loads with ease. Its brass cage reduces friction, enhancing durability in high-speed scenarios.

Built for Heavy-Duty Use: 2315-M-C3 Bearing
For automation equipment, 2315-M-C3 Bearing’s open design allows easy lubrication, ensuring smooth performance in robotic arms. The C3 clearance accommodates thermal expansion, ideal for variable temperatures.

Automotive vs Aerospace: Applications of 2315-M-C3 Bearing
In automotive systems, 2315-M-C3 Bearing supports drivetrains, while in aerospace, its precision suits auxiliary equipment. The chrome steel construction ensures reliability in both demanding environments.
