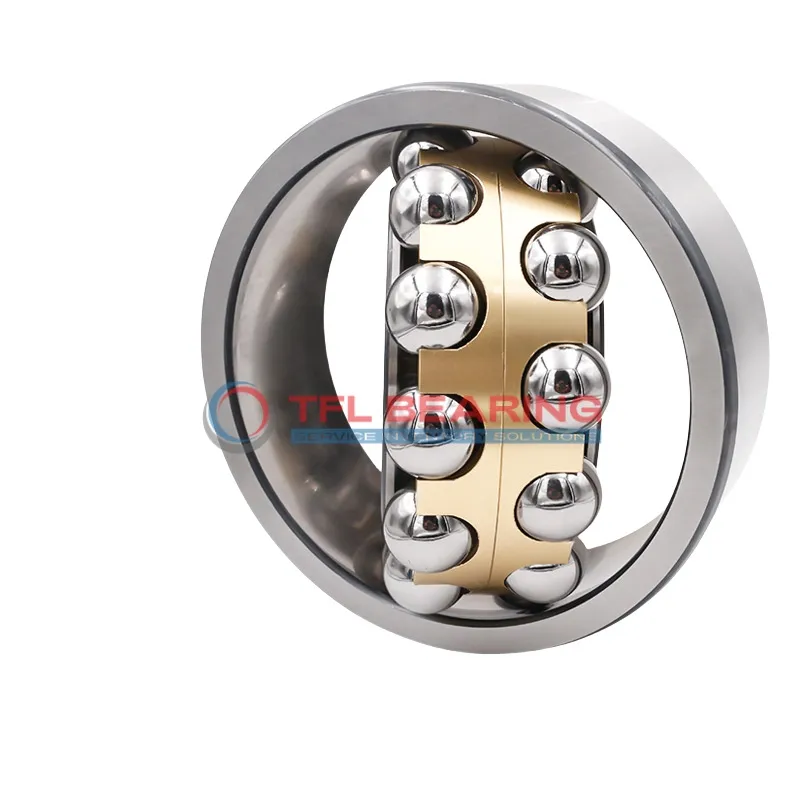

Self Aligning Ball Bearings 2315 KM

Brand: TFL Bearing Interchangeable: SKF 2315 KM 75 mm × 160 mm × 55 mm Metric Open
Part number: 2315 KM
Self Aligning Ball Bearings 2315 KM
In Stock
US$149.95 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width55 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring97.8 mm
Internal Diameter On Outer Ring136.4 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load27,900 lbf
Static Radial Load9,675 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight5.16 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2315 KM is a self-aligning ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 27900 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 5.16kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for industrial use.

Features

Performance Features of 2315 KM Bearing

2315 KM Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 27900 lbf, making it suitable for heavy-duty applications.

The nylon cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 5,600 rpm, it balances performance and durability.

2315 KM Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication, reducing maintenance needs.

Application

Industrial Uses of 2315 KM Bearing
2315 KM Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load support in demanding environments.

In automotive applications, 2315 KM Bearing fits well in gearboxes and wheel hubs, thanks to its durable chrome steel construction. The nylon cage reduces friction, making it suitable for high-speed rotations.

For automation equipment, 2315 KM Bearing’s open design allows easy lubrication, extending its lifespan in robotic arms. Its metric dimensions make it a versatile choice for various European and Asian machinery standards.

Where to Use 2315 KM Bearing
You’ll often find 2315 KM Bearing in agricultural machinery, where its ability to handle radial loads and misalignments is invaluable. The wide temperature range also makes it adaptable to outdoor conditions.

In printing presses, 2315 KM Bearing’s smooth operation ensures consistent performance under continuous use. The lubricated design minimises maintenance needs, keeping downtime low.
