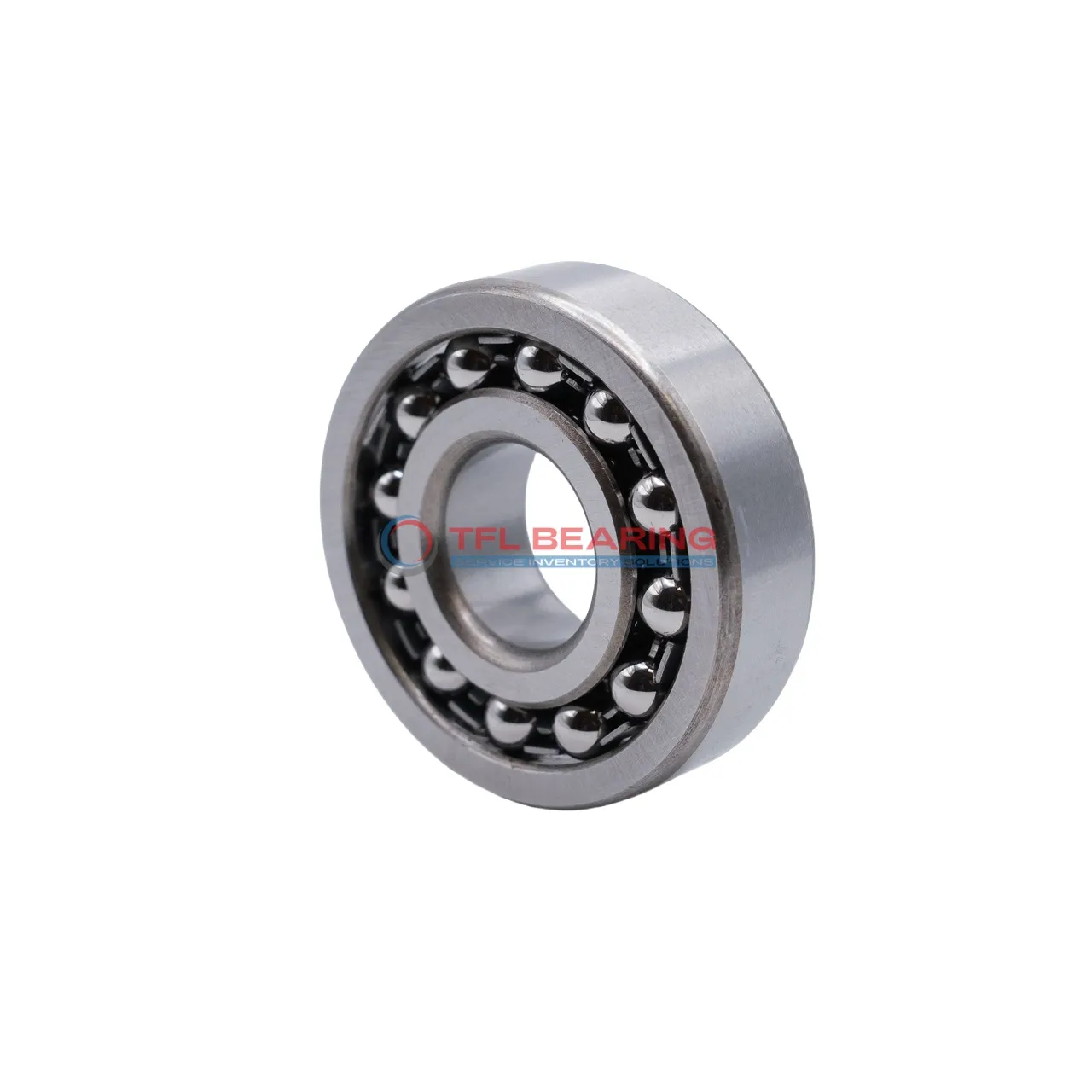

Self Aligning Ball Bearings 2312KC3

Self Aligning Ball Bearings 2312KC3

The 2312KC3 is a self-aligning ball bearing with a 60mm tapered bore and 130mm outer diameter, built for radial loads. It measures 46mm in width and handles dynamic loads up to 19598 lbf, with a maximum speed of 7000 RPM.

Made from chrome steel with a stainless steel cage, it offers durability and smooth operation. The double-row design and C3 radial clearance allow for slight misalignments, reducing wear.

Its open construction simplifies lubrication, and it performs well in temperatures from -30°C to 110°C. Interchangeable with SKF bearings, it’s a practical choice for replacements.

Ideal for heavy machinery or conveyor systems where alignment flexibility is needed. Weighing 2.6kg, it’s sturdy yet manageable for industrial use. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2312KC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 46 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 77.1 mm
  • Internal Diameter On Outer Ring 109.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 19598 lbf
  • Static Radial Load 6412 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 2.6 kg
  • Price（$） 152.51
Self Aligning Ball Bearings 2312KC3 dimension drawing
Download DWG Download PDF

Features

How Is 2312KC3 Bearing Engineered for Reliability?

2312KC3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 19598 lbf, making it suitable for heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 7,000 rpm, it delivers consistent performance under varying conditions.

2312KC3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its C3 radial clearance allows for thermal expansion, ensuring reliability in diverse environments.

Application

Industrial Uses of 2312KC3 Bearing
2312KC3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature helps compensate for minor misalignments. The double-row design provides excellent radial load capacity, making it suitable for demanding environments.

In automotive applications, 2312KC3 Bearing can be found in gearboxes and drivetrains, where its tapered bore ensures a secure fit. The chrome steel construction offers durability, even under continuous use.

For automation equipment, 2312KC3 Bearing supports robotic arms and assembly lines, thanks to its smooth operation and high-speed capability. The open seal design allows for easy lubrication, extending its service life.

What Makes 2312KC3 Bearing a Preferred Choice?
2312KC3 Bearing stands out in applications requiring both radial load support and self-alignment, such as in agricultural machinery. Its stainless steel cage adds resistance to wear, ensuring long-term reliability.

The bearing’s C3 radial clearance makes it ideal for situations with thermal expansion, like in electric motors. Users appreciate its consistent performance and ease of maintenance.

Built for Heavy-Duty Use: 2312KC3 Bearing
2312KC3 Bearing excels in construction equipment, where its robust design handles heavy loads and rough conditions. The lubricated setup reduces friction, enhancing efficiency.

In mining applications, 2312KC3 Bearing’s durability and alignment capabilities prevent premature wear. Its metric sizing ensures compatibility with a wide range of machinery.
