Self Aligning Ball Bearings 2310-M-C3

Brand: TFL Bearing Interchangeable: SKF 2310-M-C3 50 mm × 110 mm × 40 mm Metric Open
Part number: 2310-M-C3
Self Aligning Ball Bearings 2310-M-C3
In Stock
US$202.44 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width40 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring66 mm
Internal Diameter On Outer Ring92.5 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load14,332 lbf
Static Radial Load4,500 lbf
Temperature Range-30° to 110 °C
Max Speed8,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight1.65 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

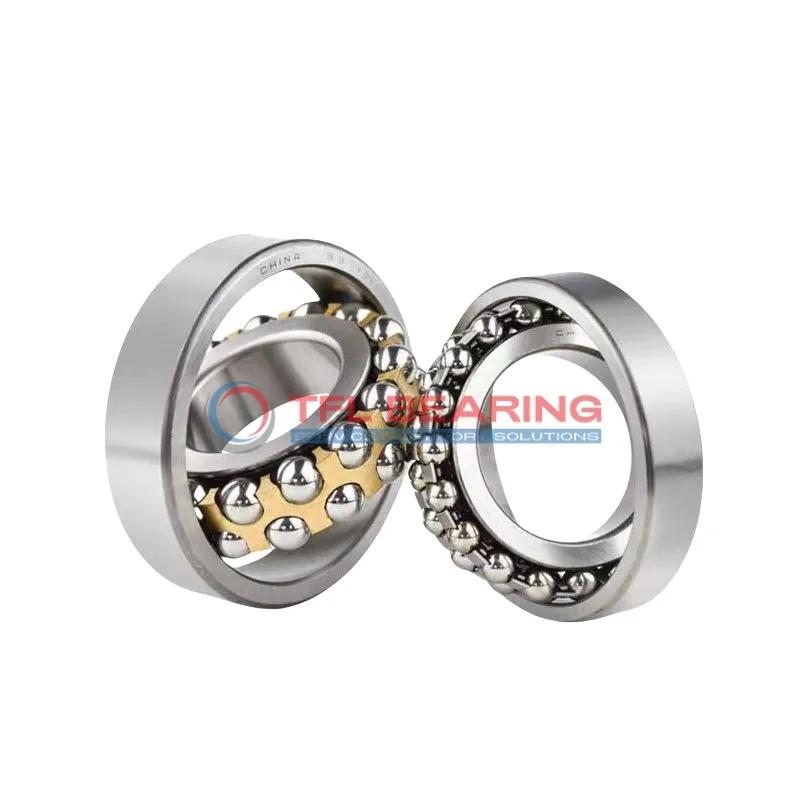

The 2310-M-C3 is a self-aligning ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14332 lbf and operates smoothly at speeds up to 8500 RPM.

Its double-row design and brass cage provide durability, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.65kg, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 2310-M-C3 Bearing

2310-M-C3 Bearing features a double-row design, allowing it to handle significant radial loads with ease.
Its dynamic radial load capacity of 14332 lbf ensures reliable performance in various applications.

The chrome steel rings and balls provide durability, while the brass cage maintains proper ball alignment.
This reduces friction and wear, extending the bearing’s service life.

With a maximum speed of 8,500 rpm, 2310-M-C3 Bearing balances speed and load capacity efficiently.
Its C3 radial clearance offers flexibility in applications with thermal expansion or misalignment.

The open seal design simplifies maintenance, making it suitable for industrial environments.
Its temperature range of -30° to 110°C ensures performance in diverse operating conditions.

Application

Industrial Uses of 2310-M-C3 Bearing
2310-M-C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles misalignment effortlessly. The open seal type allows for easy lubrication, extending its service life in demanding environments.

Where Is 2310-M-C3 Bearing Used?
In automotive applications, 2310-M-C3 Bearing fits well in gearboxes and wheel hubs, thanks to its radial load capacity and C3 clearance. The brass cage ensures smooth operation even under high-speed conditions.

Perfect Fit for Automation: 2310-M-C3 Bearing
For robotic arms and automated production lines, 2310-M-C3 Bearing offers reliable performance with its chrome steel construction. Its self-aligning feature reduces wear, making it ideal for precision movements.

Medical vs Industrial: Where 2310-M-C3 Bearing Excels
While 2310-M-C3 Bearing is robust enough for industrial pumps, its precision also suits medical imaging devices. The lubricated design ensures quiet operation, crucial for sensitive environments.

Light-Duty vs Heavy-Duty: Best Uses for 2310-M-C3 Bearing
From small electric motors to large agricultural equipment, 2310-M-C3 Bearing adapts seamlessly. The metric sizing and C3 clearance make it versatile for various load and speed requirements.
