Self Aligning Ball Bearings 2310 E-2RS1TN9/W64

Brand: TFL Bearing Interchangeable: SKF 2310 E-2RS1TN9/W64 50 mm × 110 mm × 40 mm Metric Sealed
Part number: 2310 E-2RS1TN9/W64

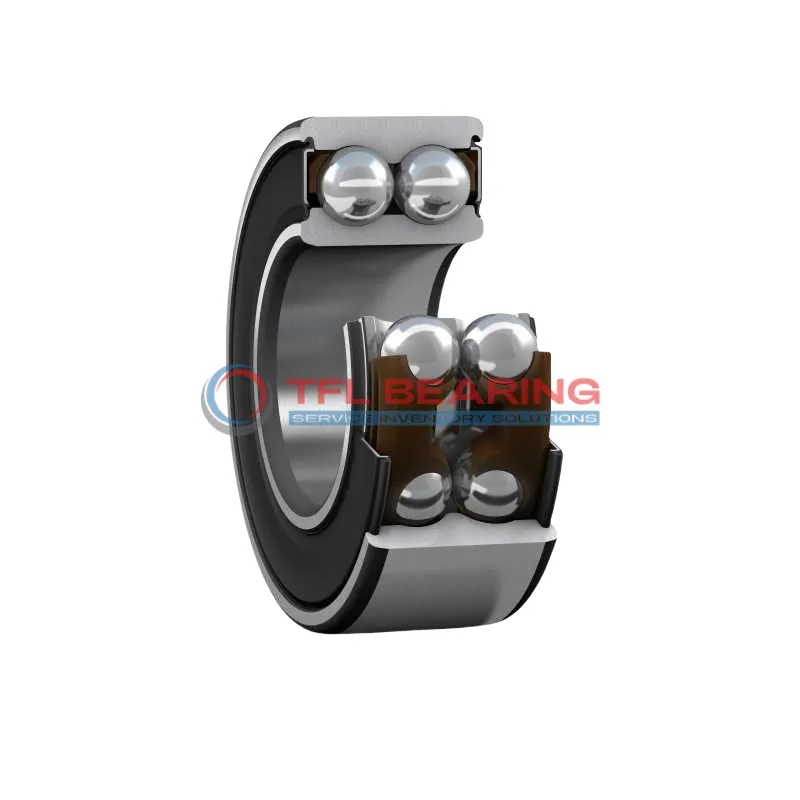

Self Aligning Ball Bearings 2310 E-2RS1TN9/W64
In Stock
US$136.87 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width40 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring62.9 mm
Internal Diameter On Outer Ring95.2 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load9,810 lbf
Static Radial Load3,150 lbf
Temperature Range-30° to 110 °C
Max Speed4,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight1.65 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2310 E-2RS1TN9/W64 is a self-aligning ball bearing with a 50mm bore and 110mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 9810 lbf and operates smoothly at speeds up to 4000 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing comes pre-lubricated for easy installation and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.65kg, it’s a robust option for heavy-duty use. Compliant with RoHS and REACH standards for safe and reliable performance.

Features

Why Choose 2310 E-2RS1TN9/W64 Bearing for Precision Tasks?

2310 E-2RS1TN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 9810 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage provide protection against contaminants and reduce maintenance needs.
With a maximum speed of 4,000 rpm, it offers reliable performance in various conditions.

Application

Common Applications of 2310 E-2RS1TN9/W64 Bearing
In industrial settings, 2310 E-2RS1TN9/W64 Bearing is commonly used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

How Does 2310 E-2RS1TN9/W64 Bearing Improve Performance?
For automotive applications like electric motors, 2310 E-2RS1TN9/W64 Bearing reduces friction and wear, ensuring smooth operation. Its double-row construction provides added stability under radial loads, making it a reliable choice for long-term use.

Built for Heavy-Duty Use: 2310 E-2RS1TN9/W64 Bearing
In robotics and automation, 2310 E-2RS1TN9/W64 Bearing handles repetitive movements with precision, thanks to its nylon cage and chrome steel components. The lubricated design further enhances performance in high-speed scenarios.

Medical vs Industrial: Where 2310 E-2RS1TN9/W64 Bearing Excels
While 2310 E-2RS1TN9/W64 Bearing is sturdy enough for industrial machinery, it also meets the quiet operation needs of medical devices like lab equipment. The temperature range ensures reliability in varied environments.
