Self Aligning Ball Bearings 2308-K 2RS

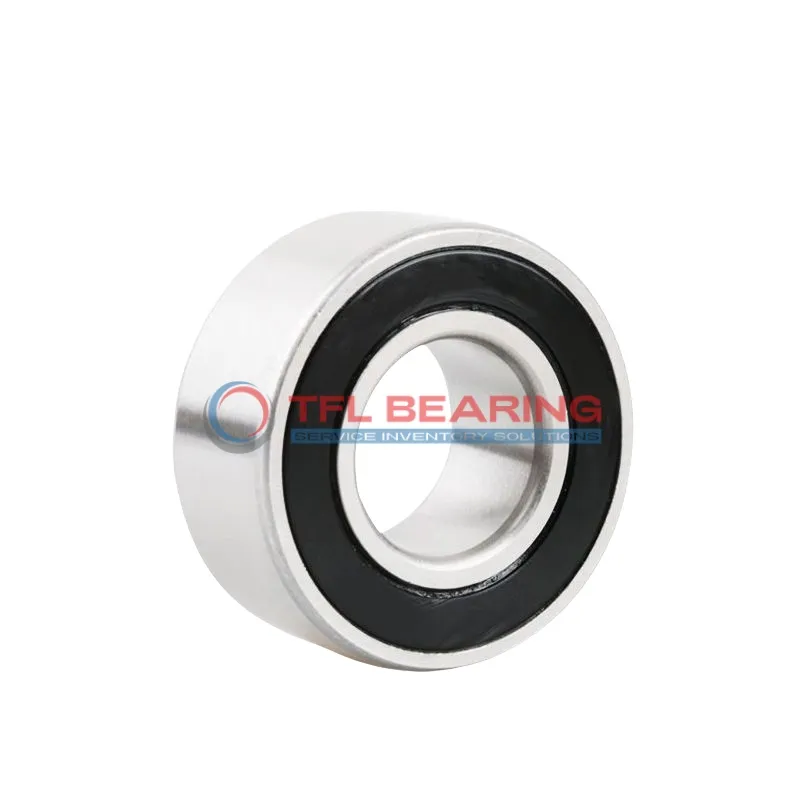

Self Aligning Ball Bearings 2308-K 2RS

The 2308-K 2RS is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, built to handle radial loads. Its compact 33mm width fits snugly in tight spaces, while the double-row design offers stability.
Made from chrome steel with a nylon cage, it supports dynamic loads up to 7605 lbf and spins smoothly at 4800 RPM. The sealed design keeps lubrication in and contaminants out.
This bearing adjusts to minor misalignments, reducing wear in uneven setups. It’s ideal for machinery like conveyors or agricultural equipment where alignment isn’t perfect.
Weighing 0.96kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, especially where SKF compatibility is needed. Works well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308-K 2RS
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
  • Price（$） 99.85
Self Aligning Ball Bearings 2308-K 2RS dimension drawing
Download DWG Download PDF

Features

How Is 2308-K 2RS Bearing Engineered for Reliability?

2308-K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 7605 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing wear.
With a maximum speed of 4,800 rpm, it offers a balance of durability and performance.

2308-K 2RS Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its tapered bore design simplifies installation and enhances alignment accuracy.

Application

Common Applications of 2308-K 2RS Bearing
The 2308-K 2RS Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. Its sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2308-K 2RS Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. The tapered bore ensures a secure fit, reducing slippage during high-speed rotations.

For automation equipment, 2308-K 2RS Bearing’s double-row design offers stability in robotic arms and assembly lines. The nylon cage reduces friction, making it suitable for smooth, low-noise operations.

In household appliances like washing machines, 2308-K 2RS Bearing handles unbalanced loads with ease. Its lubricated construction ensures quiet performance, even during prolonged use.
