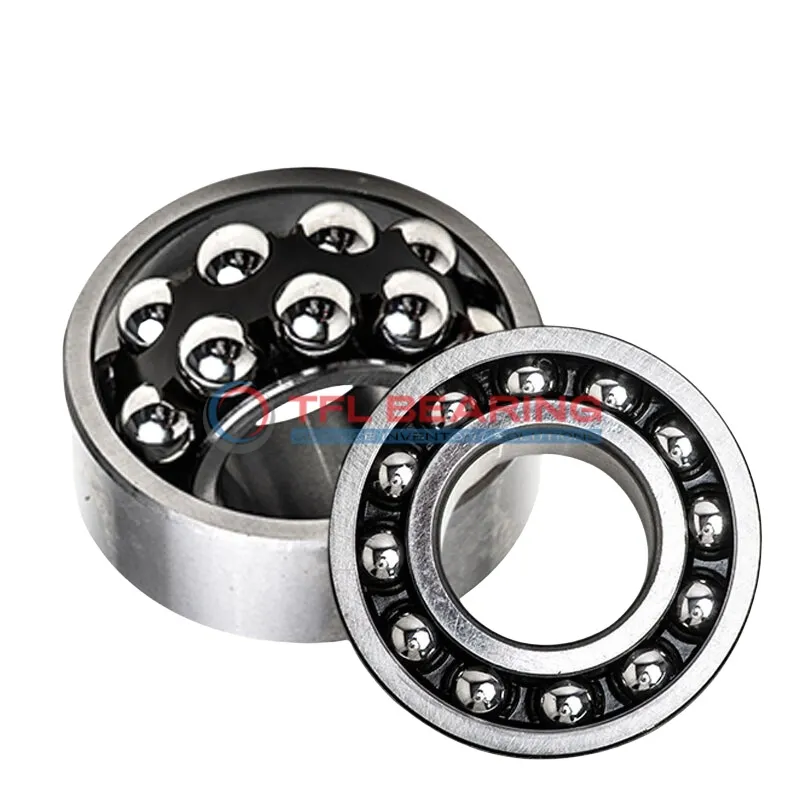

Self Aligning Ball Bearings 108-TVH

Self Aligning Ball Bearings 108-TVH

The 108-TVH is a compact self-aligning ball bearing with an 8mm bore and 22mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 596 lbf and spins smoothly at speeds up to 40,000 RPM.

Its double-row design and open seal allow for easy alignment and maintenance, while the nylon cage reduces friction. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where misalignment might occur.

Weighing just 0.014kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 108-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 12.709 mm
  • Internal Diameter On Outer Ring 17.6 mm
  • Chamfer Dimension 0.3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 596 lbf
  • Static Radial Load 126 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 0.014 kg
  • Price（$） 13.41
Self Aligning Ball Bearings 108-TVH dimension drawing
Download DWG Download PDF

Features

How Is 108-TVH Bearing Engineered for Reliability?

108-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 596 lbf makes it suitable for various applications.
The nylon cage helps maintain ball alignment, reducing friction and wear.
With a maximum speed of 40,000 rpm, it offers both durability and high-speed performance.

Application

Where Is 108-TVH Bearing Used?
108-TVH Bearing is commonly used in industrial equipment like conveyor systems and small machinery, where its self-aligning feature helps compensate for minor misalignments. The double-row design provides stability under radial loads, making it suitable for continuous operation.

In automotive applications, 108-TVH Bearing can be found in components such as electric motors and small gearboxes. Its compact size and high-speed capability make it a reliable choice for space-constrained environments.

For consumer electronics, 108-TVH Bearing works well in devices like printers and small fans. The nylon cage reduces noise, ensuring smooth and quiet performance in everyday use.

The 108-TVH Bearing is also handy in automation systems, particularly in robotic arms and small actuators. Its high-speed tolerance and low maintenance needs make it a practical option for precision movements.

Medical devices like small pumps and lab equipment benefit from 108-TVH Bearing’s consistent performance. The chrome steel construction ensures durability, even in sterilised environments.
