Self Aligning Ball Bearings 2307E-K 2RS

Brand: TFL Bearing Interchangeable: SKF 2307E-K 2RS 35 mm × 80 mm × 31 mm Metric Sealed
Part number: 2307E-K 2RS
Self Aligning Ball Bearings 2307E-K 2RS
In Stock
US$94.90 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width31 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring43.7 mm
Internal Diameter On Outer Ring69.2 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load1,912 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

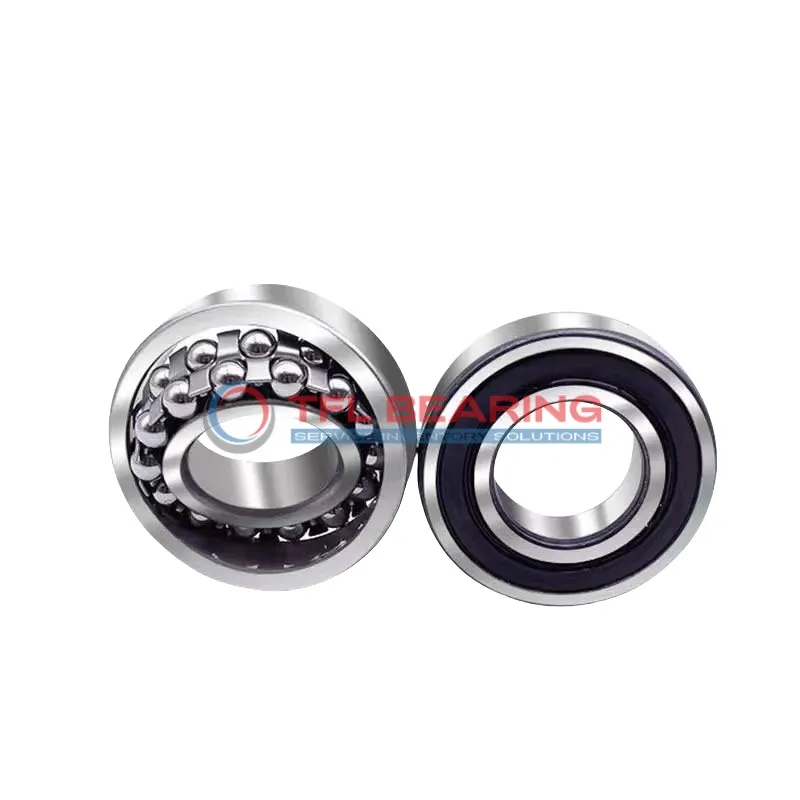

The 2307E-K 2RS is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its double-row construction and sealed design provide reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 5962 lbf and spins smoothly at speeds up to 5600 RPM. The tapered bore ensures a secure fit on shafts.

This bearing is pre-lubricated and works well in temperatures from -30°C to 110°C. Its self-aligning feature helps compensate for minor misalignments, reducing wear.

Ideal for applications like conveyor systems or agricultural machinery where alignment adjustments are needed. Weighing 0.7kg, it’s a sturdy choice for industrial use. Compliant with RoHS and REACH standards.

Features

Why Choose 2307E-K 2RS Bearing for Precision Tasks?

2307E-K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 5962 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 5,600 rpm, it offers reliable performance in various conditions.

2307E-K 2RS Bearing’s tapered bore design simplifies installation and improves alignment.
Its temperature range of -30° to 110°C ensures consistent operation in diverse environments.

Application

Industrial Uses of 2307E-K 2RS Bearing
2307E-K 2RS Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature helps compensate for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

What Makes 2307E-K 2RS Bearing a Preferred Choice?
In automotive applications, 2307E-K 2RS Bearing is found in gearboxes and wheel hubs, thanks to its ability to handle radial loads smoothly. The nylon cage reduces friction, making it quieter and more efficient for vehicle use.

Built for Heavy-Duty Use: 2307E-K 2RS Bearing
For automation equipment like robotic arms, 2307E-K 2RS Bearing offers reliable performance with its double-row design. The chrome steel construction ensures durability even in high-speed operations.

Medical vs Industrial: Where 2307E-K 2RS Bearing Excels
In medical devices such as imaging equipment, 2307E-K 2RS Bearing provides precise movement due to its low friction. Meanwhile, in industrial settings, its robust design handles heavier loads with ease.
