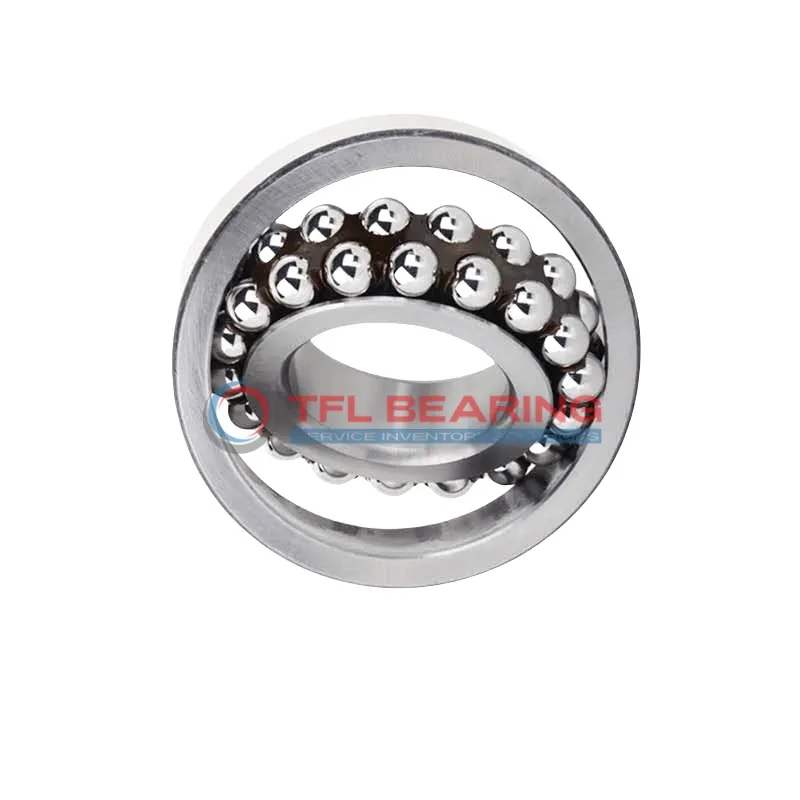

Self Aligning Ball Bearings 2307-TVH

Self Aligning Ball Bearings 2307-TVH

The 2307-TVH is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its compact 31mm width fits snugly in tight spaces while handling loads up to 5962 lbf.

Made from chrome steel with a nylon cage, it offers smooth rotation at speeds up to 5600 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

This double-row bearing automatically adjusts to minor misalignments, ideal for applications like conveyor systems or agricultural machinery. It operates reliably in temperatures from -30°C to 110°C.

Weighing 0.7kg, it’s a sturdy yet manageable component. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2307-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 31 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 43.7 mm
  • Internal Diameter On Outer Ring 69.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 1912 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.7 kg
  • Price（$） 67.38
Self Aligning Ball Bearings 2307-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2307-TVH Bearing for Precision Tasks?

2307-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 5962 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage help maintain smooth operation with minimal maintenance.
With a maximum speed of 5,600 rpm, it balances performance and durability in various conditions.

Application

Industrial Uses of 2307-TVH Bearing
2307-TVH Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2307-TVH Bearing fits well in wheel hubs and transmission systems, thanks to its radial load capacity. The nylon cage reduces noise, making it suitable for passenger vehicles.

For robotics, 2307-TVH Bearing offers smooth movement in joint mechanisms, where precision is key. Its chrome steel construction provides durability in repetitive motion scenarios.

In household appliances like washing machines, 2307-TVH Bearing handles unbalanced loads with ease. The lubricated design ensures quiet operation, even during high-speed spins.
