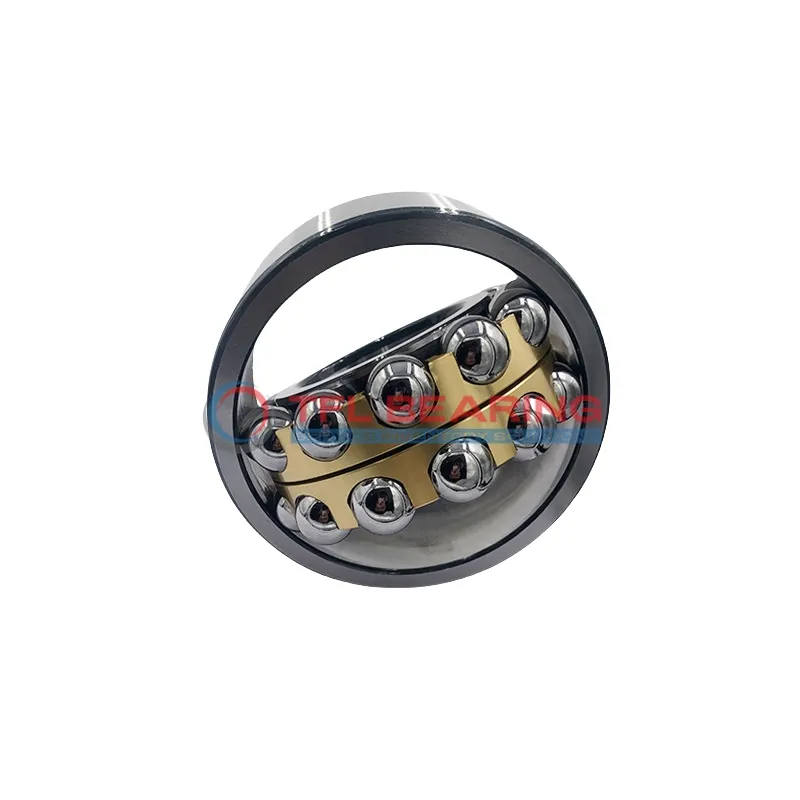

Self Aligning Ball Bearings 2307 M C/3

Self Aligning Ball Bearings 2307 M C/3

The 2307 M C/3 is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.

Made from chrome steel with a brass cage, it handles dynamic radial loads up to 5962 lbf and operates smoothly at speeds up to 5600 RPM. The bearing comes pre-lubricated for easy installation.

Its self-aligning feature compensates for minor misalignments, reducing wear and tear. Ideal for applications like conveyor systems or agricultural machinery where alignment issues may occur.

Weighing 0.7kg, it’s sturdy yet manageable. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. Works well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2307 M C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 31 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 43.7 mm
  • Internal Diameter On Outer Ring 69.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 1912 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.7 kg
  • Price（$） 143.73
Self Aligning Ball Bearings 2307 M C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2307 M C/3 Bearing for Precision Tasks?

2307 M C/3 Bearing features a double-row design, providing excellent radial load capacity of 5962 lbf.

Its chrome steel rings and balls ensure durability, while the brass cage maintains precise alignment.

With a maximum speed of 5,600 rpm, it delivers smooth and reliable performance in various applications.

The sealed construction keeps contaminants out, reducing maintenance needs and extending service life.

Application

Industrial Uses of 2307 M C/3 Bearing
2307 M C/3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its double-row design helps handle moderate radial loads while maintaining smooth operation.

Where Is 2307 M C/3 Bearing Used?
In automotive applications, 2307 M C/3 Bearing fits well in gearboxes and wheel hubs, thanks to its sealed design that keeps contaminants out. The brass cage adds durability, making it suitable for long-term use.

Built for Heavy-Duty Use: 2307 M C/3 Bearing
For automation and robotics, 2307 M C/3 Bearing provides reliable performance in robotic arms and assembly lines. Its chrome steel construction ensures stability even under continuous movement.

Medical vs Industrial: Where 2307 M C/3 Bearing Excels
In medical devices like imaging equipment, 2307 M C/3 Bearing offers precision and low noise, crucial for sensitive environments. The lubricated design also reduces maintenance needs in high-use scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 2307 M C/3 Bearing
For household appliances such as washing machines, 2307 M C/3 Bearing ensures quiet and efficient operation. Its sealed feature protects against dust and moisture, extending its lifespan in everyday use.
