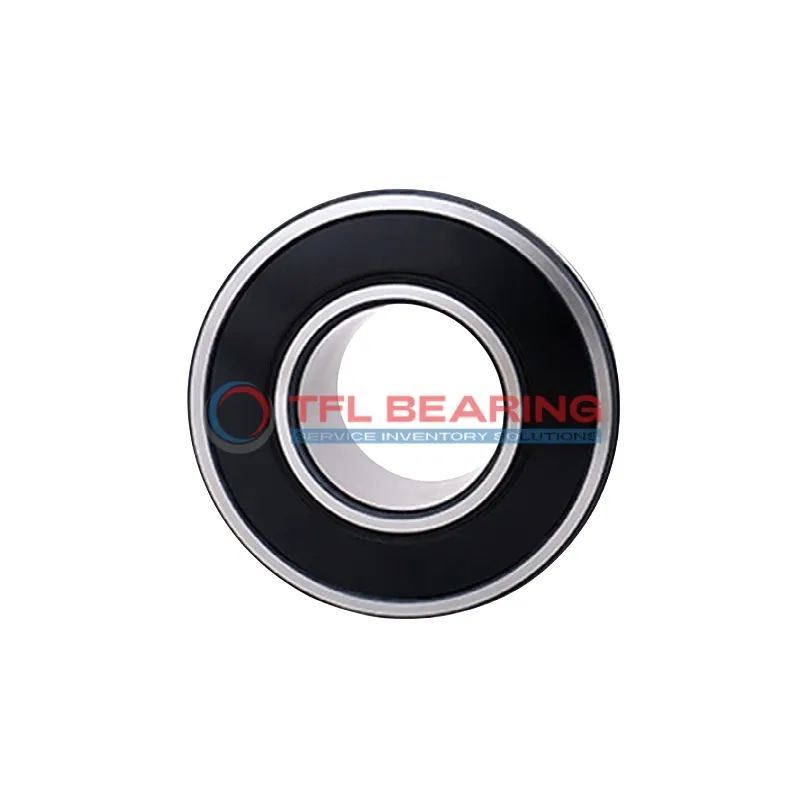

Self Aligning Ball Bearings 2307 E-2RS1TN9/C3

Brand: TFL Bearing Interchangeable: SKF 2307 E-2RS1TN9/C3 35 mm × 80 mm × 31 mm Metric Sealed
Part number: 2307 E-2RS1TN9/C3
Self Aligning Ball Bearings 2307 E-2RS1TN9/C3
In Stock
US$97.80 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width31 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring43.7 mm
Internal Diameter On Outer Ring69.2 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load5,962 lbf
Static Radial Load1,912 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2307 E-2RS1TN9/C3 is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its compact size (35mm x 80mm x 31mm) makes it suitable for tight spaces while handling loads up to 5962 lbf.

The double-row design and sealed construction help it run smoothly at speeds up to 5600 RPM, even in dusty environments. The nylon cage reduces friction, and the C3 radial clearance allows for slight misalignment.

This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable option for replacements.

Ideal for industrial machinery or conveyor systems where alignment flexibility is needed. Weighing 0.7kg, it’s sturdy yet easy to handle. Compliant with RoHS and REACH standards.

Features

Why Choose 2307 E-2RS1TN9/C3 Bearing for Precision Tasks?

2307 E-2RS1TN9/C3 Bearing features a double-row design, offering excellent radial load capacity up to 5962 lbf.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction and noise.

The sealed construction of 2307 E-2RS1TN9/C3 Bearing protects against dust and moisture, extending its service life.
It operates smoothly within a temperature range of -30° to 110°C, making it versatile for various environments.

With a maximum speed of 5,600 rpm, 2307 E-2RS1TN9/C3 Bearing balances performance and reliability.
Its C3 radial clearance provides optimal operation under varying load conditions.

Application

Common Applications of 2307 E-2RS1TN9/C3 Bearing
2307 E-2RS1TN9/C3 Bearing is widely used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2307 E-2RS1TN9/C3 Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. Its nylon cage reduces vibration and noise, enhancing driving comfort.

For automation equipment, 2307 E-2RS1TN9/C3 Bearing ensures smooth operation in robotic arms and assembly lines. The C3 radial clearance allows for thermal expansion, making it suitable for high-speed operations.

In household appliances like washing machines, 2307 E-2RS1TN9/C3 Bearing offers durability and quiet performance. The lubricated design ensures long-term reliability with minimal maintenance.
