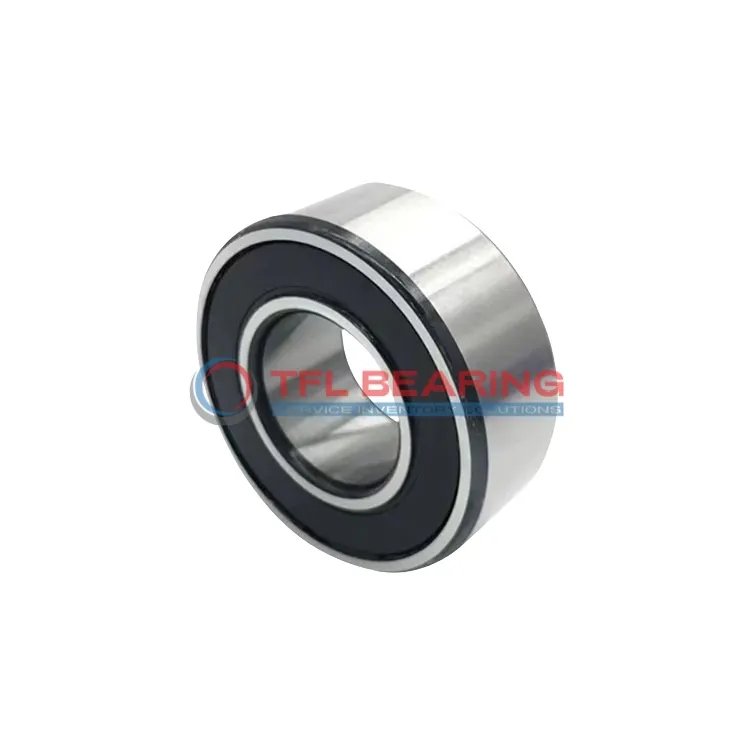

Self Aligning Ball Bearings 2306E-2RS C/3

Brand: TFL Bearing Interchangeable: SKF 2306E-2RS C/3 30 mm × 72 mm × 27 mm Metric Sealed
Part number: 2306E-2RS C/3
Self Aligning Ball Bearings 2306E-2RS C/3
In Stock
US$61.77 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width27 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring40.4 mm
Internal Diameter On Outer Ring61.88 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,062 lbf
Static Radial Load1,530 lbf
Temperature Range-30° to 110 °C
Max Speed6,700 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.51 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2306E-2RS C/3 is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5062 lbf and operates smoothly at speeds up to 6700 RPM.

Its double-row design and sealed construction help maintain alignment and keep dirt out, extending service life. The nylon cage reduces friction, making it run quietly and efficiently.

This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment. Weighing 0.51kg, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards.

Features

Why Choose 2306E-2RS C/3 Bearing for Precision Tasks?

2306E-2RS C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.

Its sealed construction protects against contaminants, making it suitable for demanding environments.

The nylon cage reduces friction and noise, enhancing smooth operation in precision applications.

With a maximum speed of 6,700 rpm, it offers reliable performance across a wide temperature range.

Application

Common Applications of 2306E-2RS C/3 Bearing
2306E-2RS C/3 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

In automotive applications, 2306E-2RS C/3 Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. Its nylon cage reduces friction, making it suitable for high-speed operations.

For household appliances like washing machines, 2306E-2RS C/3 Bearing offers quiet and smooth performance. The chrome steel construction ensures durability even with frequent use.

In agricultural equipment, 2306E-2RS C/3 Bearing handles heavy loads while maintaining alignment. The lubricated design reduces maintenance needs in tough working conditions.

Where Is 2306E-2RS C/3 Bearing Used?
2306E-2RS C/3 Bearing is a common choice for electric motors, where its double-row design provides stability under radial loads. The sealed construction also protects against moisture and dirt.

In food processing machinery, 2306E-2RS C/3 Bearing’s nylon cage and sealed design meet hygiene standards. Its temperature range allows it to perform well in both hot and cold environments.

Built for Heavy-Duty Use: 2306E-2RS C/3 Bearing
2306E-2RS C/3 Bearing excels in construction equipment, where its robust design handles heavy loads and vibrations. The self-aligning feature ensures consistent performance even on uneven surfaces.

For printing presses, 2306E-2RS C/3 Bearing’s precision and smooth operation are essential. The chrome steel balls and rings provide long-lasting performance under constant use.

Automotive vs Industrial: Applications of 2306E-2RS C/3 Bearing
In automotive uses, 2306E-2RS C/3 Bearing supports smooth rotation in steering systems. Its sealed design prevents grease leakage, reducing maintenance.

In industrial settings, 2306E-2RS C/3 Bearing is ideal for gearboxes and fans. The self-aligning capability ensures reliable operation even with slight shaft misalignments.
