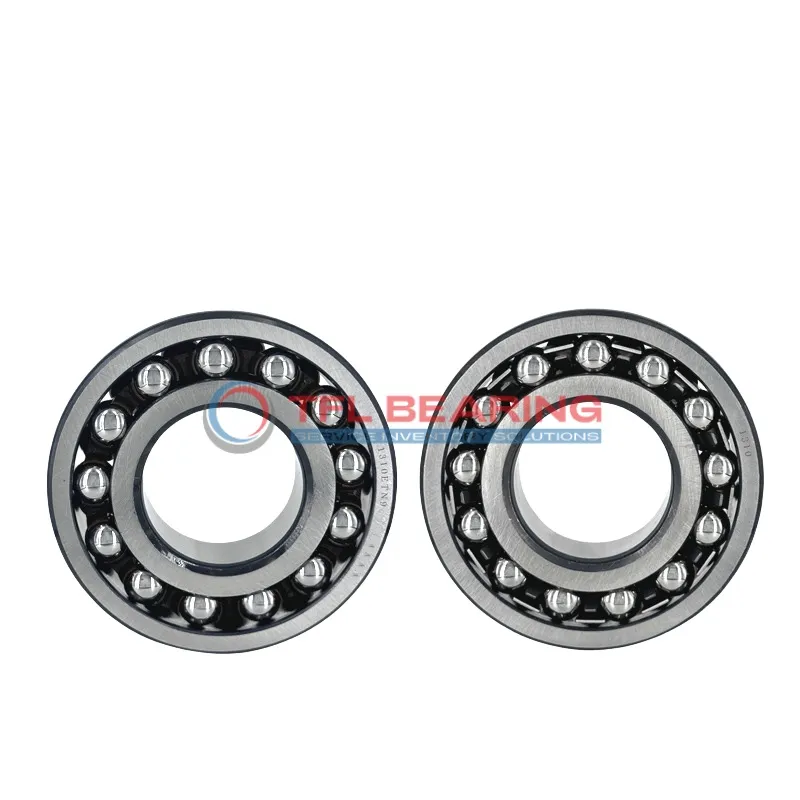

Self Aligning Ball Bearings 2306 P/6

Brand: TFL Bearing Interchangeable: SKF 2306 P/6 30 mm × 72 mm × 27 mm Metric Open
Part number: 2306 P/6
Self Aligning Ball Bearings 2306 P/6
In Stock
US$52.68 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width27 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring41.9 mm
Internal Diameter On Outer Ring59.8 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load1,980 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2306 P/6 is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 13,000 RPM.

Its double-row design allows for slight misalignment, making it forgiving in less precise setups. The open seal type ensures easy access for lubrication, while the stainless steel cage enhances durability.

This bearing suits environments with temperatures ranging from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.5kg, it’s a robust choice for applications like conveyor systems or agricultural machinery where alignment flexibility is needed. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 2306 P/6 Bearing for Precision Tasks?

2306 P/6 Bearing features a double-row design, offering excellent radial load capacity up to 7020 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 13,000 rpm, it delivers reliable performance for high-speed tasks.

2306 P/6 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 2306 P/6 Bearing
2306 P/6 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for heavy radial loads.

Where Is 2306 P/6 Bearing Used?
In automotive applications, 2306 P/6 Bearing can be found in gearboxes and wheel hubs, offering reliable performance under varying loads. Its metric sizing ensures compatibility with a wide range of vehicle models.

Built for Heavy-Duty Use: 2306 P/6 Bearing
For automation and robotics, 2306 P/6 Bearing supports precise movements in robotic arms and assembly lines. The chrome steel construction ensures durability in high-speed operations.

Medical vs Industrial: Where 2306 P/6 Bearing Excels
In medical devices like imaging equipment, 2306 P/6 Bearing provides smooth and quiet operation. Its stainless steel cage enhances resistance to wear, making it a dependable choice for long-term use.

Practical Applications of 2306 P/6 Bearing
2306 P/6 Bearing is also found in consumer electronics like printers and fans, where its compact design and reliability are key. The open seal type allows for easy maintenance in these everyday devices.
