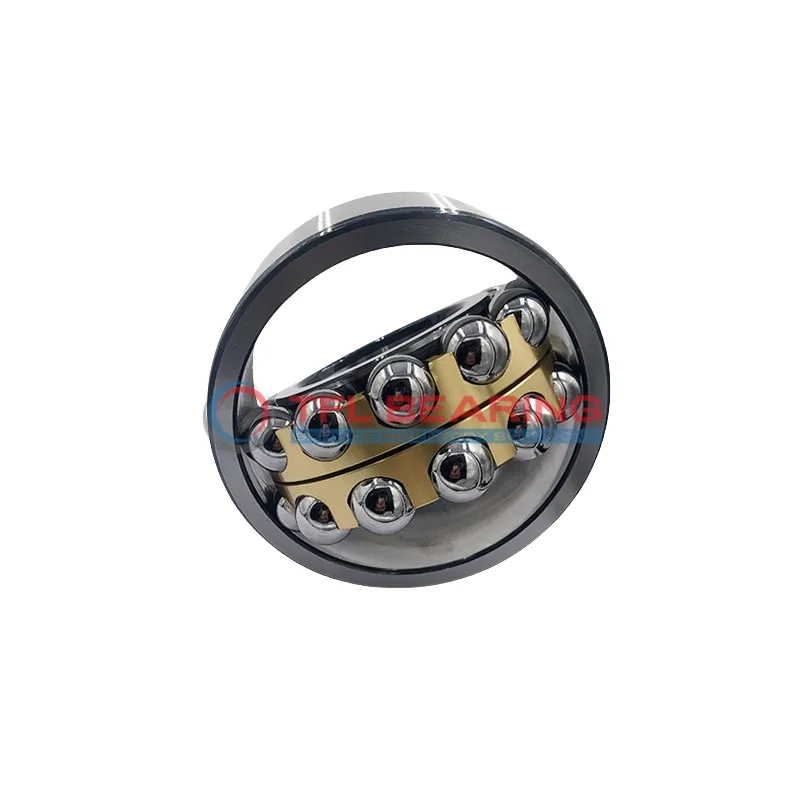

Self Aligning Ball Bearings 2306 M/C3

Brand: TFL Bearing Interchangeable: SKF 2306 M/C3 30 mm × 72 mm × 27 mm Metric Open
Part number: 2306 M/C3
Self Aligning Ball Bearings 2306 M/C3
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width27 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring41.9 mm
Internal Diameter On Outer Ring59.8 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load1,980 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight0.56 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2306 M/C3 is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 13000 RPM.

Its double-row design and brass cage provide reliable performance, while the open seal allows for easy lubrication. The bearing functions well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 0.56kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and versatile use.

Features

Why Choose 2306 M/C3 Bearing for Precision Tasks?

2306 M/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 7020 lbf, making it suitable for demanding applications.

The brass cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 13,000 rpm, it offers both durability and smooth operation.

2306 M/C3 Bearing operates efficiently in temperatures from -30° to 110°C.
Its C3 radial clearance ensures reliable performance under varying conditions.

Application

Industrial Uses of 2306 M/C3 Bearing
2306 M/C3 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature helps handle misalignment issues. The double-row design provides extra stability, making it suitable for heavy radial loads.

What Makes 2306 M/C3 Bearing a Preferred Choice?
In automotive applications, 2306 M/C3 Bearing works well in gearboxes and wheel hubs due to its high-speed capability and radial load support. The brass cage ensures smooth operation even under demanding conditions.

Perfect Fit for Automation: 2306 M/C3 Bearing
For robotics and automation, 2306 M/C3 Bearing offers reliable performance in robotic arms and assembly lines. Its open design allows for easy lubrication, extending service life in continuous operations.

Medical vs Industrial: Where 2306 M/C3 Bearing Excels
While 2306 M/C3 Bearing is robust enough for industrial equipment, its precision also suits medical devices like diagnostic machines. The chrome steel construction ensures durability in both environments.
