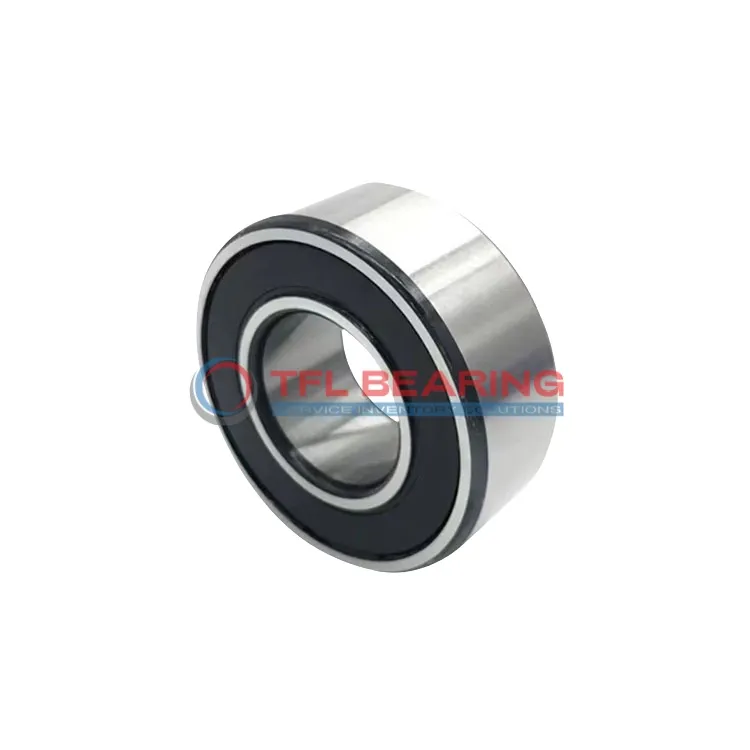

Self Aligning Ball Bearings 2306-K 2RS

Brand: TFL Bearing Interchangeable: SKF 2306-K 2RS 30 mm × 72 mm × 27 mm Metric Open
Part number: 2306-K 2RS
Self Aligning Ball Bearings 2306-K 2RS
In Stock
US$92.65 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width27 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring41.9 mm
Internal Diameter On Outer Ring59.8 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load1,980 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2306-K 2RS is a self-aligning ball bearing with a 30mm tapered bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and reaches speeds of 13000 RPM smoothly.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the stainless steel cage enhances durability. The bearing operates efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for machinery where misalignment might occur, such as conveyor systems or agricultural equipment.

Weighing 0.5kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Why Choose 2306-K 2RS Bearing for Precision Tasks?

2306-K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 7020 lbf makes it suitable for high-performance applications.
The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 13,000 rpm, it offers both reliability and efficiency in demanding conditions.

Application

Common Applications of 2306-K 2RS Bearing
2306-K 2RS Bearing is widely used in industrial machinery, especially in systems where misalignment can occur, such as conveyor belts and agricultural equipment. Its double-row design helps distribute loads evenly, reducing wear over time.

In automotive applications, 2306-K 2RS Bearing fits well in wheel hubs and transmission systems, thanks to its tapered bore for secure mounting. The chrome steel construction ensures it handles radial loads reliably, even in demanding conditions.

For automation setups, 2306-K 2RS Bearing works smoothly in robotic arms and assembly line mechanisms. The lubricated design keeps operations quiet and efficient, making it a solid choice for continuous use.

Around the home, 2306-K 2RS Bearing can be found in appliances like washing machines, where its self-aligning feature compensates for minor shaft shifts. The stainless steel cage adds durability against everyday wear.
