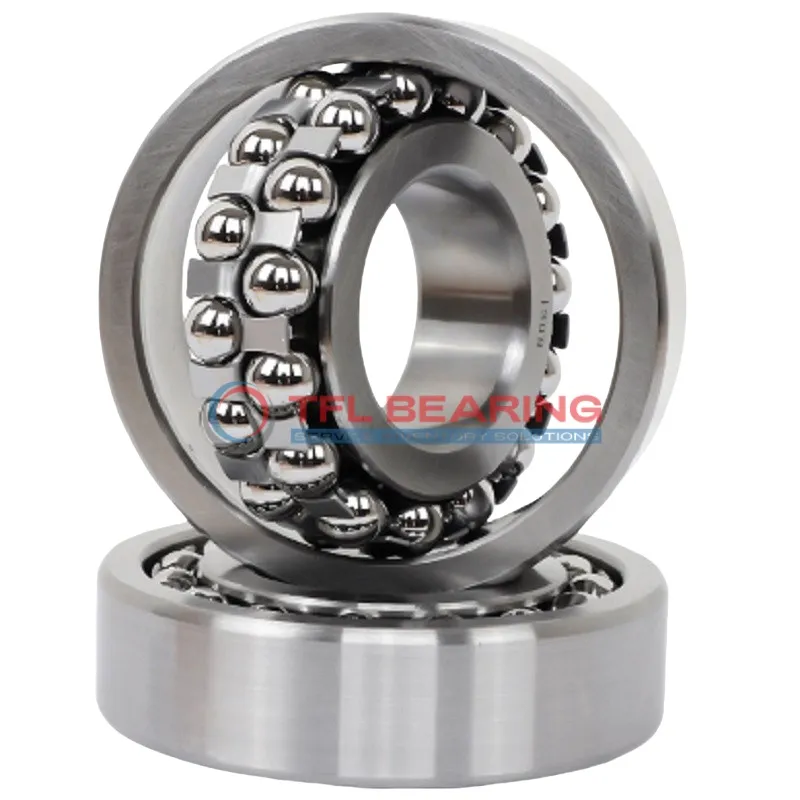

Self Aligning Ball Bearings 2220KJ

Brand: TFL Bearing Interchangeable: SKF 2220KJ 100 mm × 180 mm × 46 mm Metric Open
Part number: 2220KJ
Self Aligning Ball Bearings 2220KJ
In Stock
US$614.49 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width46 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring124 mm
Internal Diameter On Outer Ring156.9 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,938 lbf
Static Radial Load9,112 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2220KJ is a self-aligning ball bearing with a 100mm tapered bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21938 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and open seal type allow for easy lubrication and alignment adjustments, making it versatile for various setups. The steel cage adds durability, ensuring reliable performance over time.

This model fits well in applications with slight shaft misalignment, such as conveyor systems or agricultural machinery. It works in temperatures from -30°C to 110°C, suitable for most industrial environments.

Weighing 5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and practical choice for replacements, especially where SKF compatibility is needed.

Features

Performance Features of 2220KJ Bearing

2220KJ Bearing is built with double-row chrome steel balls, offering strong radial load capacity up to 21938 lbf.
Its self-aligning design compensates for misalignment, ensuring smooth operation in various applications.
The steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,800 rpm, it delivers reliable performance in demanding conditions.

Application

Industrial Uses of 2220KJ Bearing
2220KJ Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load support in demanding environments.

Where Is 2220KJ Bearing Used?
In automotive applications, 2220KJ Bearing fits well in gearboxes and drivetrains, handling radial loads with ease. Its taper bore design simplifies installation, making it a go-to choice for maintenance teams.

Perfect Fit for Automation: 2220KJ Bearing
For robotic arms and automated production lines, 2220KJ Bearing offers smooth operation thanks to its chrome steel construction. The open seal type allows for easy lubrication, extending service life.

Light-Duty vs Heavy-Duty: Best Uses for 2220KJ Bearing
In light-duty scenarios like packaging machines, 2220KJ Bearing provides consistent performance without overheating. For heavy-duty uses such as mining equipment, its robust design handles high radial loads effortlessly.

Medical vs Industrial: Where 2220KJ Bearing Excels
While not typical for medical devices, 2220KJ Bearing shines in industrial settings like pulp and paper mills. Its steel cage and radial clearance make it durable for continuous operation.
