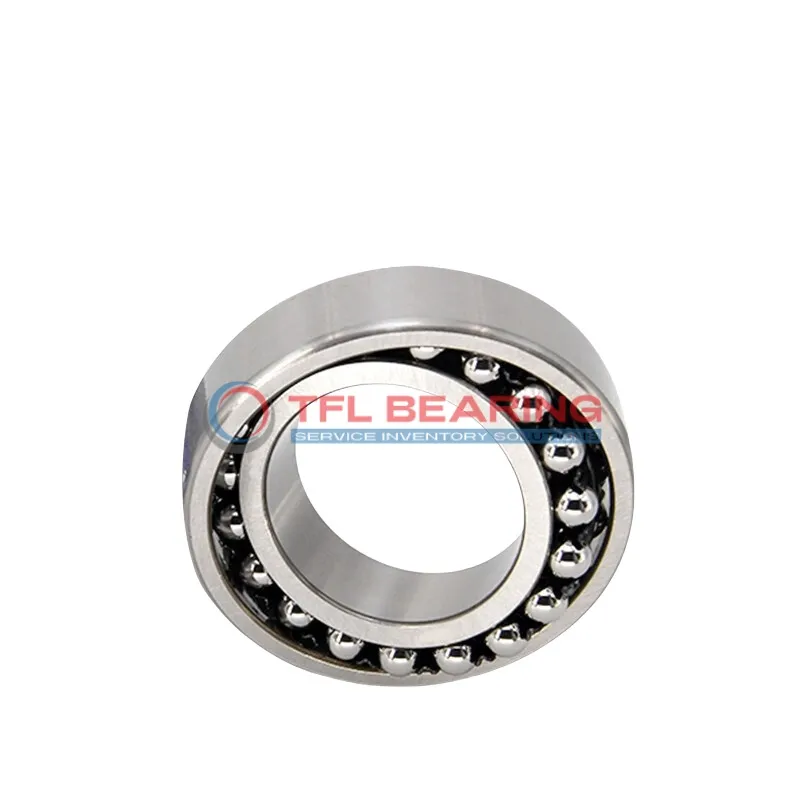

Self Aligning Ball Bearings 2220-K C/3

Brand: TFL Bearing Interchangeable: SKF 2220-K C/3 100 mm × 180 mm × 46 mm Metric Open
Part number: 2220-K C/3
Self Aligning Ball Bearings 2220-K C/3
In Stock
US$394.81 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width46 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring124 mm
Internal Diameter On Outer Ring156.9 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,938 lbf
Static Radial Load9,112 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2220-K C/3 is a self-aligning ball bearing with a 100mm tapered bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21938 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial fans or conveyor systems where alignment flexibility is needed.

Weighing 5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 2220-K C/3 Bearing for Precision Tasks?

2220-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 21938 lbf makes it suitable for demanding industrial applications.
The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,800 rpm, it delivers reliable performance in various conditions.

Application

Industrial Uses of 2220-K C/3 Bearing
The 2220-K C/3 Bearing is commonly used in heavy machinery like conveyor belts and industrial mixers, where its self-aligning feature compensates for minor misalignments. Its double-row design ensures stability under radial loads, making it suitable for high-demand environments.

In automotive applications, 2220-K C/3 Bearing fits well in truck wheel hubs and transmission systems, thanks to its tapered bore for secure mounting. The chrome steel construction provides durability, even under constant vibration and stress.

For automation systems, 2220-K C/3 Bearing works efficiently in robotic arms and assembly lines, where smooth rotation is essential. The open seal design allows for easy lubrication, extending its service life in continuous operation.

Where Is 2220-K C/3 Bearing Used?
You’ll often find 2220-K C/3 Bearing in wind turbines, where its ability to handle radial loads and misalignment is crucial. The stainless steel cage adds corrosion resistance, ideal for outdoor or harsh conditions.

In medical imaging devices, 2220-K C/3 Bearing ensures precise movement due to its consistent performance. The lubricated design reduces friction, making it reliable for sensitive equipment.

Built for Heavy-Duty Use: 2220-K C/3 Bearing
This bearing excels in construction equipment like cranes and excavators, where heavy radial loads are common. Its robust chrome steel rings and balls withstand intense pressure without compromising performance.

In agricultural machinery, 2220-K C/3 Bearing handles the rough conditions of harvesters and tractors. The self-aligning capability ensures smooth operation even on uneven terrain.

Light-Duty vs Heavy-Duty: Best Uses for 2220-K C/3 Bearing
For light-duty applications like small electric motors, 2220-K C/3 Bearing offers reliable performance with minimal maintenance. Its metric sizing makes it versatile for various European and Asian equipment.

In heavy-duty scenarios like mining machinery, this bearing’s dynamic radial load capacity ensures longevity. The tapered bore design provides a secure fit, reducing wear over time.
