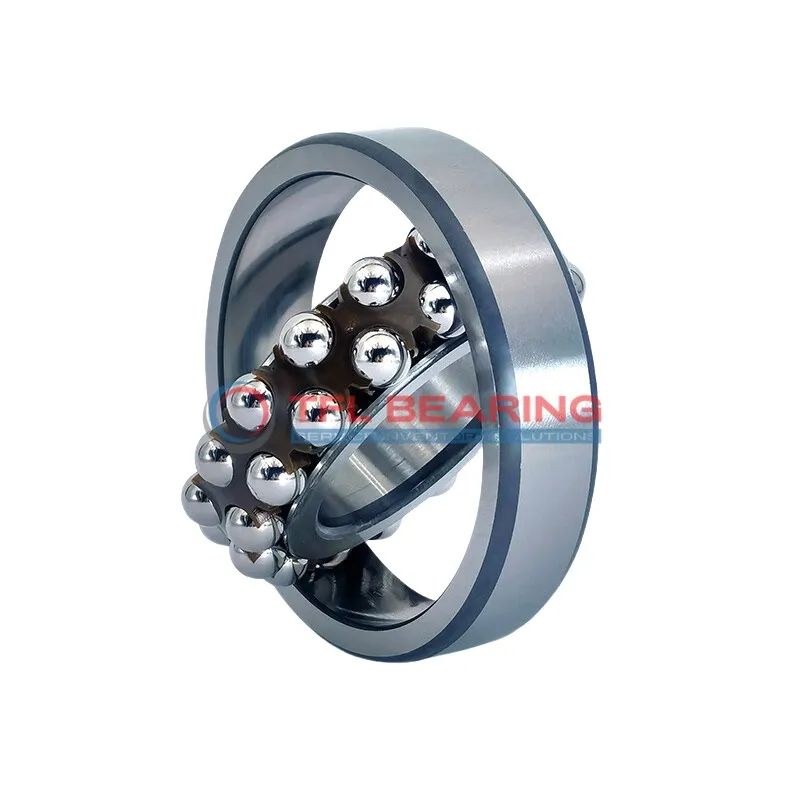

Self Aligning Ball Bearings 2216-K C/3

Brand: TFL Bearing Interchangeable: SKF 2216-K C/3 80 mm × 140 mm × 33 mm Metric Open
Part number: 2216-K C/3
Self Aligning Ball Bearings 2216-K C/3
In Stock
US$196.95 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.018mm to 0
Width33 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring99 mm
Internal Diameter On Outer Ring125.2 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load14,625 lbf
Static Radial Load5,738 lbf
Temperature Range-30° to 110 °C
Max Speed6,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight1.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2216-K C/3 is a self-aligning ball bearing with an 80mm tapered bore and 140mm outer diameter, designed for radial loads. Made from chrome steel, it handles dynamic loads up to 14625 lbf and operates smoothly at 6000 RPM.

Its double-row design and nylon cage provide flexibility and durability, accommodating slight misalignments. The open seal allows easy lubrication, extending its lifespan in demanding conditions.

This bearing suits applications like conveyor systems or agricultural machinery, where alignment adjustments are needed. It works in temperatures from -30°C to 110°C and is interchangeable with SKF models.

Weighing 1.9kg, it’s a sturdy choice for industrial use. Compliant with RoHS and REACH standards, it’s both reliable and safe.

Features

Performance Features of 2216-K C/3 Bearing

2216-K C/3 Bearing features a double-row design with chrome steel rings and balls, offering robust radial load capacity.
Its dynamic radial load reaches 14625 lbf, making it suitable for heavy-duty applications.
The nylon cage ensures smooth operation and reduces friction, enhancing efficiency.
With a maximum speed of 6,000 rpm, it balances performance and durability.

How Does 2216-K C/3 Bearing Reduce Friction?

2216-K C/3 Bearing uses a nylon cage to minimise friction between the balls and raceways.
The chrome steel construction further enhances smooth operation, even under high radial loads.
Its optimised design ensures consistent performance, reducing energy consumption.
This makes it ideal for applications where efficiency is key.

Built for Reliability: 2216-K C/3 Bearing

2216-K C/3 Bearing is crafted with high-quality chrome steel for long-lasting performance.
Its double-row design distributes loads evenly, reducing wear and extending service life.
The bearing operates smoothly within a temperature range of -30° to 110 °C.
This reliability makes it a trusted choice for industrial applications.

Steel vs Ceramic Bearings: Strengths of 2216-K C/3 Bearing

2216-K C/3 Bearing’s chrome steel construction provides excellent strength and durability.
Unlike ceramic bearings, it offers superior load capacity and resistance to impact.
The nylon cage adds to its smooth operation, reducing maintenance needs.
This combination makes it a practical choice for demanding environments.

Why Choose 2216-K C/3 Bearing for Precision Tasks?

2216-K C/3 Bearing’s precise taper bore design ensures accurate alignment in applications.
Its double-row construction maintains stability, even under varying radial loads.
The bearing’s consistent performance makes it suitable for precision machinery.
With a radial clearance of CN, it delivers reliable operation in tight tolerances.

Application

Industrial Uses of 2216-K C/3 Bearing
2216-K C/3 Bearing is commonly used in industrial machinery where misalignment compensation is needed, such as conveyor systems and textile equipment. Its double-row design helps distribute loads evenly, ensuring smooth operation even under stress.

Where Is 2216-K C/3 Bearing Used?
You’ll often find 2216-K C/3 Bearing in automotive applications like gearboxes and drivetrains, where its tapered bore ensures a secure fit. The chrome steel construction provides durability, making it suitable for high-load scenarios.

Built for Heavy-Duty Use: 2216-K C/3 Bearing
2216-K C/3 Bearing excels in heavy machinery like mining equipment, thanks to its robust nylon cage and high dynamic load capacity. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 2216-K C/3 Bearing
In automotive settings, 2216-K C/3 Bearing handles radial loads in wheel hubs and transmissions. For aerospace, its precision and reliability make it useful in auxiliary systems, though load requirements differ.

Perfect Fit for Automation: 2216-K C/3 Bearing
2216-K C/3 Bearing works well in robotic arms and automated assembly lines, where its self-aligning feature reduces wear from minor misalignments. The metric sizing ensures compatibility with standard industrial components.
