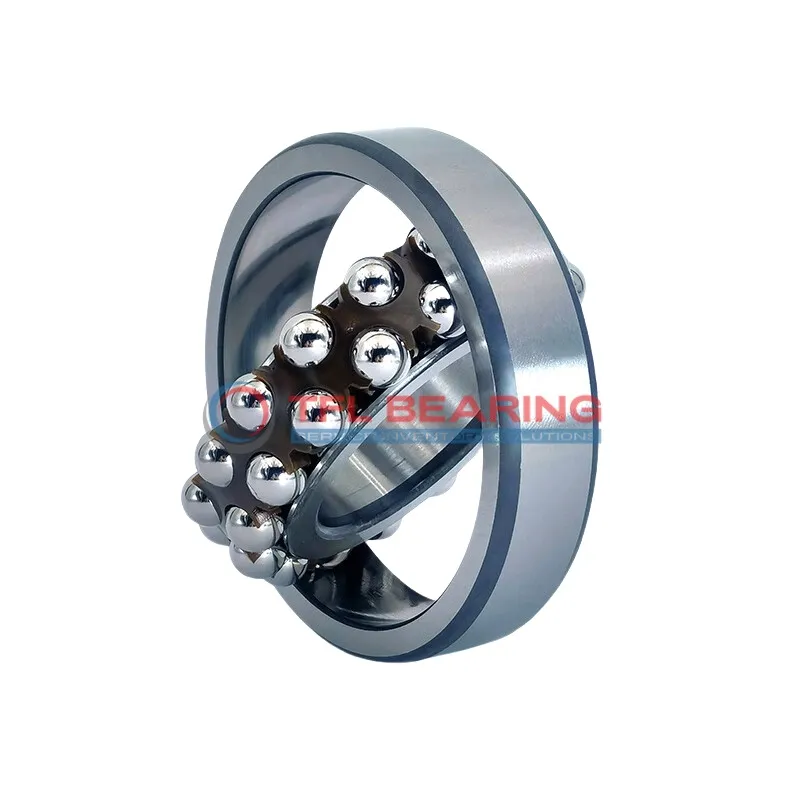

Self Aligning Ball Bearings 2215 ETN9/C3

Self Aligning Ball Bearings 2215 ETN9/C3

The 2215 ETN9/C3 is a self-aligning ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13162 lbf and operates smoothly at speeds up to 6300 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments. The nylon cage reduces friction, enhancing durability and performance.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for machinery where misalignment or heavy radial loads are common, such as conveyor systems or industrial fans.

Weighing 1.6kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2215 ETN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 91.61 mm
  • Internal Diameter On Outer Ring 116.6 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.6 kg
  • Price（$） 151.21
Self Aligning Ball Bearings 2215 ETN9/C3 dimension drawing
Download DWG Download PDF

Features

How Is 2215 ETN9/C3 Bearing Engineered for Reliability?

2215 ETN9/C3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity up to 13162 lbf.
The nylon cage ensures smooth operation and reduces friction, enhancing the bearing’s longevity.

With a maximum speed of 6,300 rpm, it maintains performance in various applications.
Its C3 radial clearance allows for thermal expansion, making it suitable for a wide temperature range.

The open seal design simplifies maintenance while the cylindrical bore ensures easy installation.
This combination of features makes 2215 ETN9/C3 Bearing a reliable choice for demanding conditions.

Application

Industrial Uses of 2215 ETN9/C3 Bearing
In conveyor systems, 2215 ETN9/C3 Bearing handles misalignment effortlessly, thanks to its self-aligning design. The double-row construction ensures stability even under heavy radial loads.

Where Is 2215 ETN9/C3 Bearing Used?
You’ll often spot 2215 ETN9/C3 Bearing in industrial fans, where its nylon cage reduces friction and noise. Its C3 clearance allows for thermal expansion in high-temperature environments.

Built for Heavy-Duty Use: 2215 ETN9/C3 Bearing
2215 ETN9/C3 Bearing shines in agricultural machinery, enduring dusty conditions while maintaining smooth rotation. The chrome steel rings add durability for long-term use.

Automotive vs Aerospace: Applications of 2215 ETN9/C3 Bearing
In automotive drivetrains, 2215 ETN9/C3 Bearing supports shafts with minimal vibration. For aerospace, its lightweight design and reliability make it suitable for auxiliary systems.

Perfect Fit for Automation: 2215 ETN9/C3 Bearing
2215 ETN9/C3 Bearing is a go-to for robotic arms, where precision and adaptability are key. The open seal design simplifies relubrication during maintenance checks.
