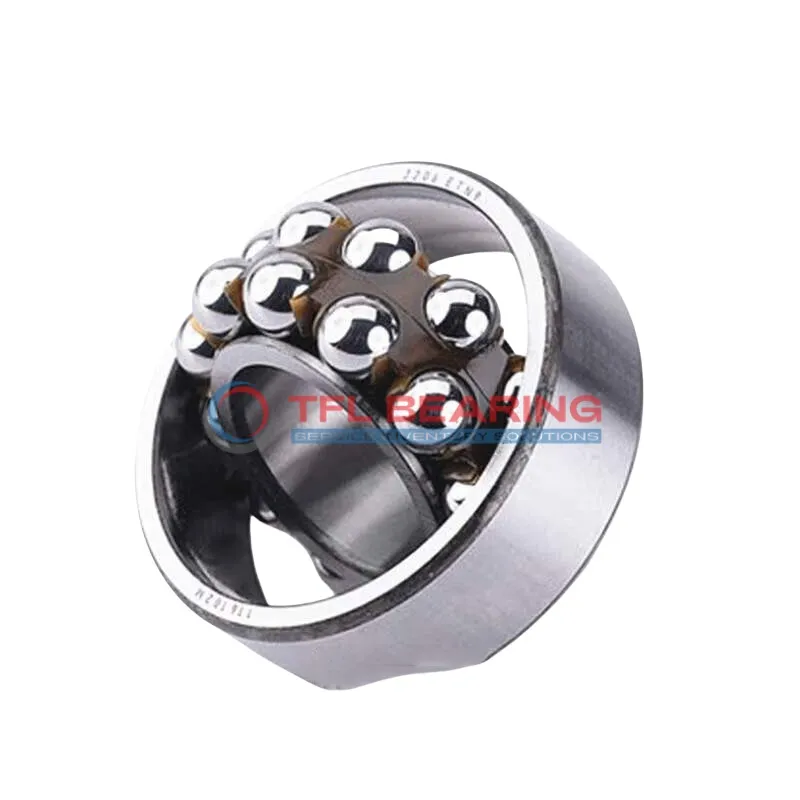

Self Aligning Ball Bearings 2215 C/3

Self Aligning Ball Bearings 2215 C/3

The 2215 C/3 is a self-aligning ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 13162 lbf and operates smoothly at speeds up to 6300 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.5kg, it’s a robust yet manageable choice for industrial applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2215 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 91.61 mm
  • Internal Diameter On Outer Ring 116.6 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.5 kg
  • Price（$） 85.56
Self Aligning Ball Bearings 2215 C/3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2215 C/3 Bearing

2215 C/3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13162 lbf, ensuring reliable performance in various applications.

The double-row design of 2215 C/3 Bearing enhances load distribution, reducing stress on individual components.
Nylon cage material helps maintain smooth operation while minimising noise and vibration.

With a maximum speed of 6,300 rpm, 2215 C/3 Bearing balances efficiency and durability.
Its open seal type allows for easy lubrication, extending maintenance intervals.

2215 C/3 Bearing operates effectively in temperatures ranging from -30° to 110°C.
The cylindrical bore design ensures a secure fit, simplifying installation.

Application

Common Applications of 2215 C/3 Bearing
In industrial settings, 2215 C/3 Bearing is widely used in conveyor systems and heavy machinery, thanks to its self-aligning capability and robust radial load handling. The double-row design ensures stability even in misaligned conditions.

Automotive applications like gearboxes benefit from 2215 C/3 Bearing’s durability and smooth operation under high radial loads. Its metric sizing makes it a versatile fit for various vehicle designs.

For automation equipment, 2215 C/3 Bearing’s nylon cage reduces friction, making it ideal for robotic arms and precision machinery. The open seal design allows for easy lubrication, extending service life.

In household appliances like washing machines, 2215 C/3 Bearing’s ability to handle misalignment and vibration ensures quiet, reliable performance. The chrome steel construction adds to its longevity in daily use.
