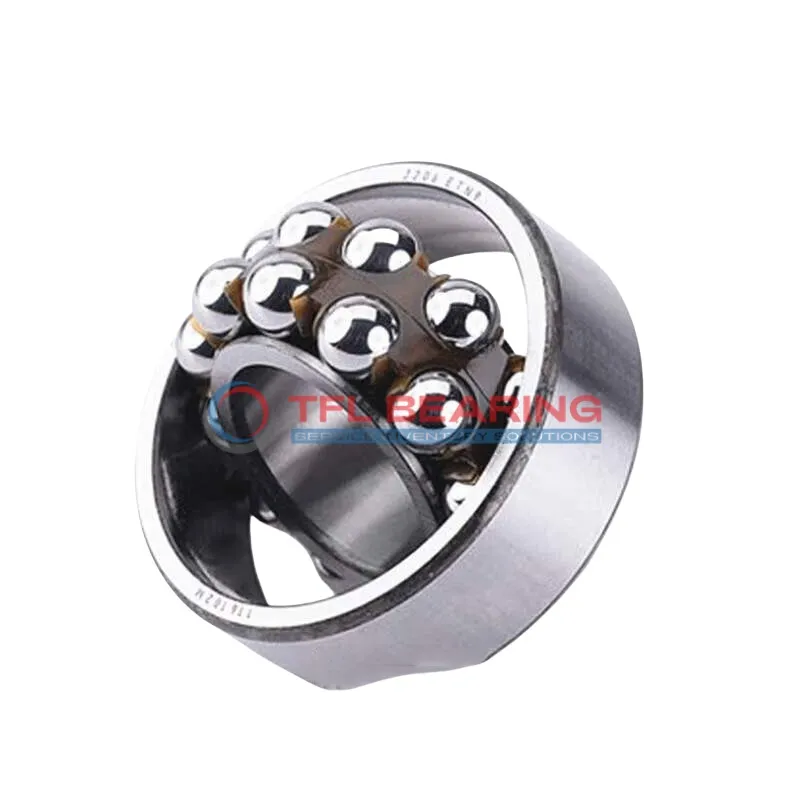

Self Aligning Ball Bearings 2213EKTN

Brand: TFL Bearing Interchangeable: SKF 2213EKTN 65 mm × 120 mm × 31 mm Metric Sealed
Part number: 2213EKTN
Self Aligning Ball Bearings 2213EKTN
In Stock
US$99.60 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.015mm to 0
Width31 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring79.3 mm
Internal Diameter On Outer Ring105.8 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,898 lbf
Static Radial Load3,150 lbf
Temperature Range-30° to 110 °C
Max Speed3,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight1.35 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2213EKTN is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, designed for radial loads. Its double-row construction and sealed design provide reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 7898 lbf and operates smoothly at speeds up to 3600 RPM. The bearing comes pre-lubricated for easy installation.

Its self-aligning feature compensates for minor misalignments, reducing wear and tear. Ideal for applications like conveyor systems or agricultural machinery where alignment issues may occur.

Weighing 1.35kg, it’s sturdy yet manageable. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. Works well in temperatures from -30°C to 110°C.

Features

How Is 2213EKTN Bearing Engineered for Reliability?

2213EKTN Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 7898 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage help maintain lubrication and reduce contamination.
With a maximum speed of 3,600 rpm, it offers a balance of durability and performance.

2213EKTN Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered bore design ensures secure fitting and alignment in various setups.

Application

Industrial Uses of 2213EKTN Bearing
2213EKTN Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor shaft misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2213EKTN Bearing supports heavy radial loads in components like wheel hubs and transmissions. Its nylon cage reduces vibration, providing smoother operation during long drives.

For industrial fans, 2213EKTN Bearing’s double-row construction handles high speeds efficiently. The lubricated design minimises maintenance needs, making it a reliable choice for continuous operation.

Where Is 2213EKTN Bearing Used?
You’ll find 2213EKTN Bearing in agricultural machinery, where its robust design withstands rough conditions. The tapered bore ensures a secure fit, even under heavy loads.

In printing presses, 2213EKTN Bearing’s precision reduces paper jams and improves print quality. The chrome steel rings offer excellent wear resistance, extending the bearing’s lifespan.

Built for Heavy-Duty Use: 2213EKTN Bearing
2213EKTN Bearing excels in construction equipment, handling uneven loads with ease. Its wide temperature range makes it suitable for both hot and cold working environments.

In food processing machinery, 2213EKTN Bearing’s sealed design prevents contamination. The nylon cage is also resistant to moisture, ideal for washdown areas.

Automotive vs Aerospace: Applications of 2213EKTN Bearing
In cars, 2213EKTN Bearing supports drivetrain components, offering durability for daily commutes. For aircraft, its lightweight design helps reduce overall fuel consumption.

In industrial robots, 2213EKTN Bearing ensures precise movement with minimal friction. The self-aligning capability is particularly useful in automated assembly lines.
