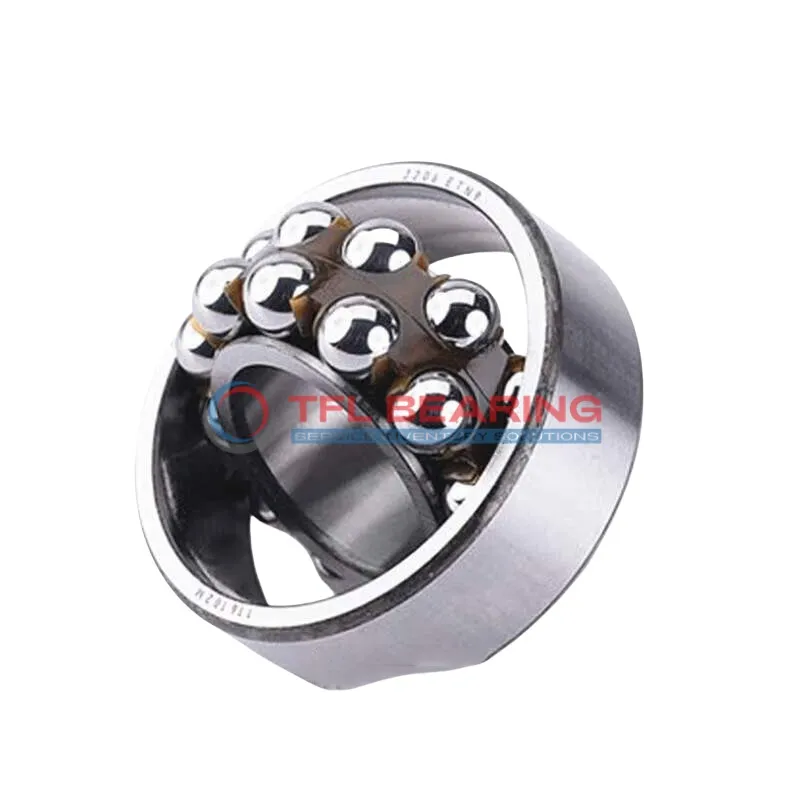

Self Aligning Ball Bearings 2213-TVH

Self Aligning Ball Bearings 2213-TVH

The 2213-TVH is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 7898 lbf and spins smoothly at speeds up to 3600 RPM. The bearing comes pre-lubricated for easy installation and maintenance.

Its self-aligning feature compensates for minor misalignments, reducing wear and tear. Ideal for applications like conveyor systems or agricultural machinery where alignment issues may occur.

Weighing 1.35kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2213-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 79.3 mm
  • Internal Diameter On Outer Ring 105.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7898 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3600 rpm
  • Weight 1.35 kg
  • Price（$） 88.91
Self Aligning Ball Bearings 2213-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2213-TVH Bearing for Precision Tasks?

2213-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 7898 lbf makes it suitable for demanding industrial applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 3,600 rpm, it offers reliable performance in various conditions.

2213-TVH Bearing operates smoothly within a temperature range of -30° to 110°C.
Its lubricated design ensures long service life with minimal maintenance.

Application

Industrial Uses of 2213-TVH Bearing
2213-TVH Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2213-TVH Bearing fits well in wheel hubs and transmission systems, thanks to its radial load capacity and durability. The nylon cage reduces friction, making it suitable for high-speed rotations.

For automation equipment, 2213-TVH Bearing’s double-row construction provides stability in robotic arms and assembly lines. Its chrome steel rings and balls offer reliable performance under continuous operation.

In household appliances like washing machines, 2213-TVH Bearing handles unbalanced loads smoothly. The lubricated design ensures quiet operation, enhancing user comfort.
