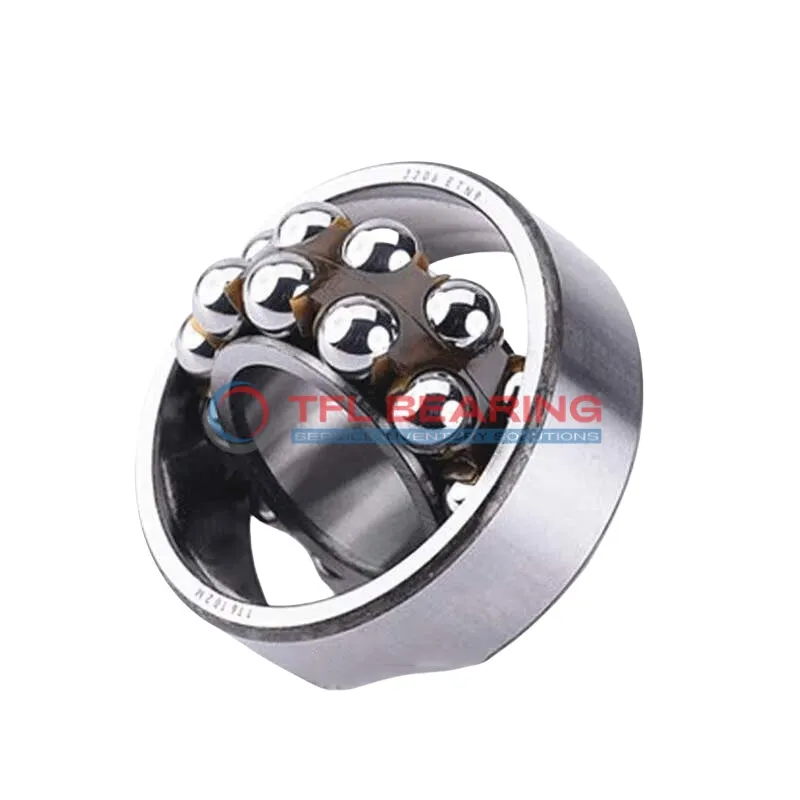

Self Aligning Ball Bearings 2213-K-TVH-C3

Self Aligning Ball Bearings 2213-K-TVH-C3

The 2213-K-TVH-C3 is a self-aligning ball bearing with a 65mm tapered bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7898 lbf and operates smoothly at speeds up to 3600 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy installation.

This model fits well in applications where shaft misalignment might occur, such as conveyor systems or agricultural machinery. It works in temperatures from -30°C to 110°C.

Weighing 1.35kg, it’s a robust choice for heavy-duty use. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2213-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 79.3 mm
  • Internal Diameter On Outer Ring 105.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7898 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3600 rpm
  • Weight 1.35 kg
  • Price（$） 88.91
Self Aligning Ball Bearings 2213-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2213-K-TVH-C3 Bearing

2213-K-TVH-C3 Bearing is designed with a double-row ball construction, providing excellent radial load capacity.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction for smoother operation.

The sealed design of 2213-K-TVH-C3 Bearing protects against contaminants, making it suitable for harsh environments.
With a dynamic radial load capacity of 7898 lbf, it handles demanding applications with ease.

2213-K-TVH-C3 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under varying conditions.

Application

Key Fields for 2213-K-TVH-C3 Bearing
2213-K-TVH-C3 Bearing is widely used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2213-K-TVH-C3 Bearing is often found in wheel hubs and transmissions, where its double-row construction handles radial loads efficiently. The taper bore ensures a secure fit, reducing slippage during high-speed operation.

For automation equipment, 2213-K-TVH-C3 Bearing supports robotic arms and assembly lines, thanks to its smooth rotation and low maintenance needs. The nylon cage reduces friction, making it ideal for continuous operation.

In household appliances like washing machines, 2213-K-TVH-C3 Bearing provides quiet and reliable performance. Its lubricated design ensures long-term durability even with frequent use.

Medical devices such as diagnostic equipment benefit from 2213-K-TVH-C3 Bearing’s precision and stability. The chrome steel construction offers consistent performance in critical applications.
