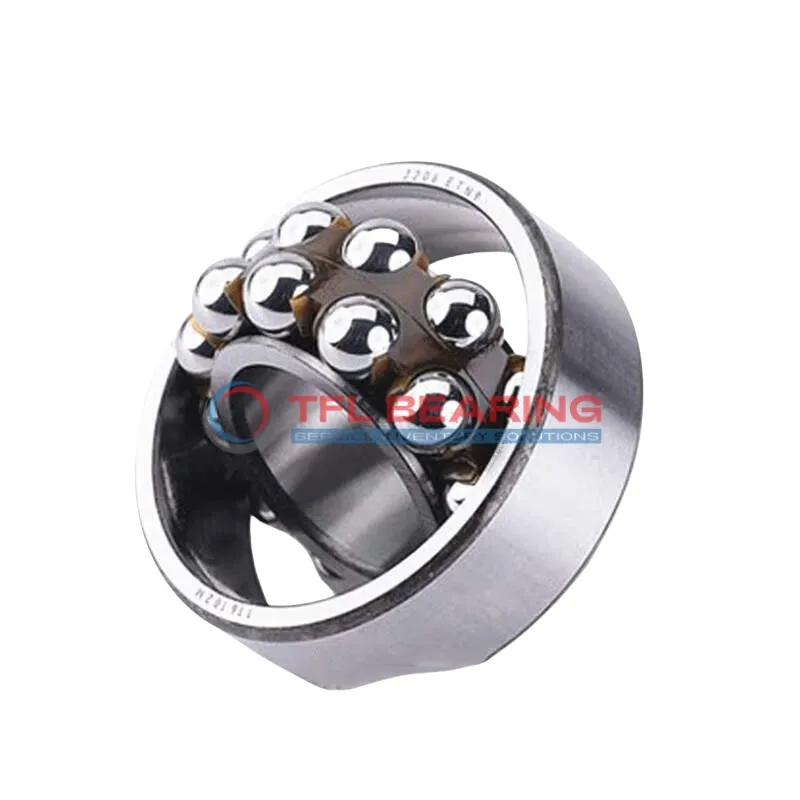

Self Aligning Ball Bearings 2213-K C/3

Brand: TFL Bearing Interchangeable: SKF 2213-K C/3 65 mm × 120 mm × 31 mm Metric Sealed
Part number: 2213-K C/3
Self Aligning Ball Bearings 2213-K C/3
In Stock
US$67.46 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.015mm to 0
Width31 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring79.3 mm
Internal Diameter On Outer Ring105.8 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,898 lbf
Static Radial Load3,150 lbf
Temperature Range-30° to 110 °C
Max Speed3,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight1.35 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2213-K C/3 is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, designed for radial loads. Its double-row construction and sealed design provide reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 7898 lbf and operates smoothly at speeds up to 3600 RPM. The bearing comes pre-lubricated for easy installation.

Its self-aligning feature compensates for minor misalignments, making it ideal for applications like conveyor systems or agricultural machinery. The tapered bore ensures a secure fit on shafts.

Weighing 1.35kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. Suitable for temperatures ranging from -30°C to 110°C.

Features

Why Choose 2213-K C/3 Bearing for Precision Tasks?

2213-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 7898 lbf makes it suitable for demanding applications.

The nylon cage in 2213-K C/3 Bearing reduces friction and noise, enhancing smooth operation.
With a maximum speed of 3,600 rpm, it balances performance and durability.

2213-K C/3 Bearing’s sealed design protects against contaminants, extending its service life.
It operates efficiently in temperatures ranging from -30° to 110°C, adapting to various environments.

The tapered bore design of 2213-K C/3 Bearing ensures easy and secure installation.
Its lubricated construction minimises maintenance needs, saving time and costs.

Application

Industrial Uses of 2213-K C/3 Bearing
2213-K C/3 Bearing is commonly used in industrial machinery, especially in conveyor systems and heavy-duty equipment where misalignment can occur. Its double-row design helps accommodate slight shaft deflections, ensuring smooth operation.

Where Is 2213-K C/3 Bearing Used?
In automotive applications, 2213-K C/3 Bearing fits well in wheel hubs and transmission systems due to its tapered bore for secure mounting. The sealed design keeps contaminants out, extending service life.

Built for Heavy-Duty Use: 2213-K C/3 Bearing
For automation systems, 2213-K C/3 Bearing provides reliable performance in robotic arms and assembly lines. The nylon cage reduces friction, making it suitable for continuous operation.

Automotive vs Industrial: Applications of 2213-K C/3 Bearing
In household appliances like washing machines, 2213-K C/3 Bearing handles radial loads quietly and efficiently. Its lubricated construction ensures low maintenance for everyday use.
