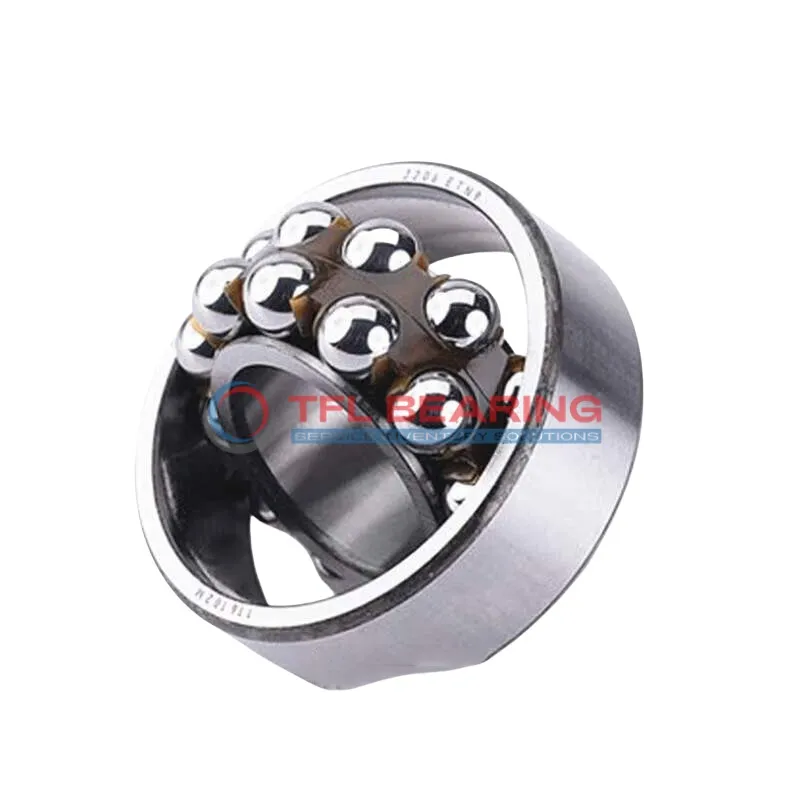

Self Aligning Ball Bearings 2213 EKTN9/C3

Self Aligning Ball Bearings 2213 EKTN9/C3

The 2213 EKTN9/C3 is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, designed for radial loads. Its double-row construction and chrome steel components ensure durability and smooth operation.

With a dynamic radial load capacity of 12870 lbf, it handles heavy-duty applications effortlessly. The bearing spins smoothly at speeds up to 7000 RPM and works in temperatures from -30°C to 110°C.

The open design and nylon cage make maintenance easy while reducing friction. Its C3 radial clearance allows for slight misalignment, ideal for applications where shaft deflection may occur.

Weighing 1.4kg, this bearing is interchangeable with SKF models, making it a reliable choice for replacements in industrial machinery or conveyor systems. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2213 EKTN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 80.68 mm
  • Internal Diameter On Outer Ring 105.5 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 12870 lbf
  • Static Radial Load 4500 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 1.4 kg
  • Price（$） 99.18
Self Aligning Ball Bearings 2213 EKTN9/C3 dimension drawing
Download DWG Download PDF

Features

How Does 2213 EKTN9/C3 Bearing Reduce Friction?

2213 EKTN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, contributing to quieter operation and extended service life.
The C3 radial clearance allows for better thermal expansion handling, maintaining performance in varied temperatures.
With a dynamic radial load capacity of 12870 lbf, it offers reliable operation in demanding conditions.

Application

Industrial Uses of 2213 EKTN9/C3 Bearing
2213 EKTN9/C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it reliable for continuous operation.

In automotive applications, 2213 EKTN9/C3 Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The chrome steel construction provides durability, even under varying road conditions.

For automation equipment, 2213 EKTN9/C3 Bearing’s nylon cage reduces friction, ideal for robotic arms and precision tools. Its C3 radial clearance allows for thermal expansion, ensuring consistent performance in high-speed scenarios.

In household appliances like washing machines, 2213 EKTN9/C3 Bearing’s open design simplifies maintenance while handling moderate loads. The lubricated setup ensures smooth operation over long periods.
