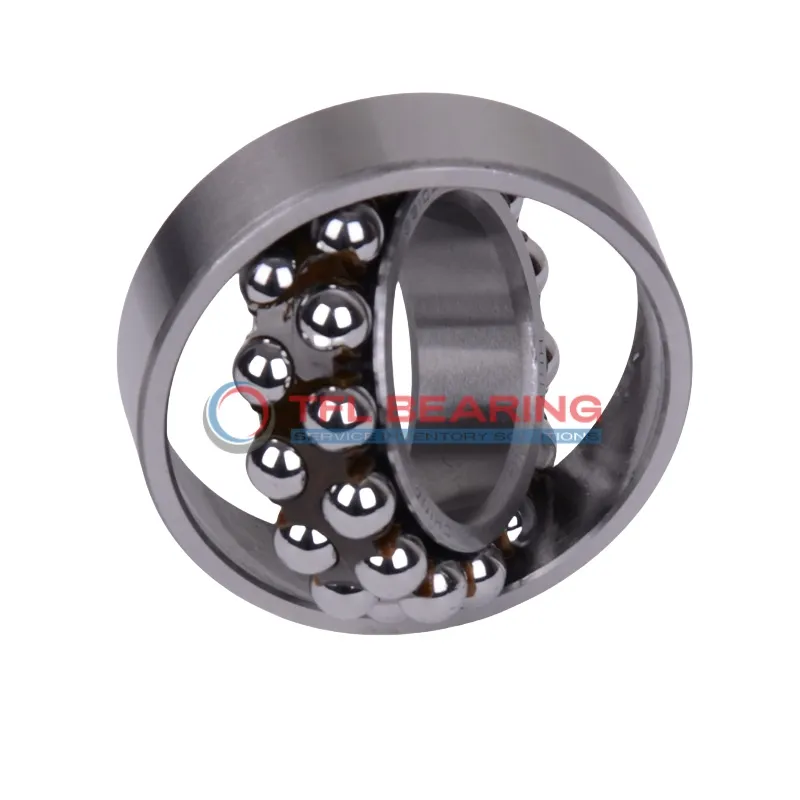

Self Aligning Ball Bearings 2212EEG15

Self Aligning Ball Bearings 2212EEG15

The 2212EEG15 is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 7020 lbf while running smoothly at 3800 RPM.

The nylon cage reduces friction, and the built-in lubrication ensures quiet operation. It works well in temperatures from -30°C to 110°C, making it suitable for varied environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing 1.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2212EEG15
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 73.2 mm
  • Internal Diameter On Outer Ring 97 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3800 rpm
  • Weight 1.05 kg
  • Price（$） 155.74
Self Aligning Ball Bearings 2212EEG15 dimension drawing
Download DWG Download PDF

Features

How Does 2212EEG15 Bearing Reduce Friction?

2212EEG15 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.

Its sealed construction keeps lubrication intact, enhancing performance in various conditions.
With a dynamic radial load capacity of 7020 lbf, it handles demanding applications reliably.

The bearing operates efficiently at speeds up to 3,800 rpm while maintaining stability.
Its self-aligning capability compensates for minor misalignments, prolonging service life.

Application

Industrial Uses of 2212EEG15 Bearing
2212EEG15 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2212EEG15 Bearing fits well in wheel hubs and transmission systems, thanks to its double-row construction for handling radial loads. The nylon cage reduces noise, making it suitable for passenger vehicles.

For automation equipment, 2212EEG15 Bearing’s lubricated design ensures smooth operation in robotic arms and conveyor belts. Its chrome steel rings provide reliable performance under continuous use.

Where Is 2212EEG15 Bearing Used?
You’ll find 2212EEG15 Bearing in household appliances like washing machines, where its sealed construction prevents water damage. The self-aligning capability also helps with vibration reduction.

In medical devices, 2212EEG15 Bearing’s consistent performance makes it ideal for diagnostic equipment. The temperature range ensures reliability in both clinical and laboratory settings.
