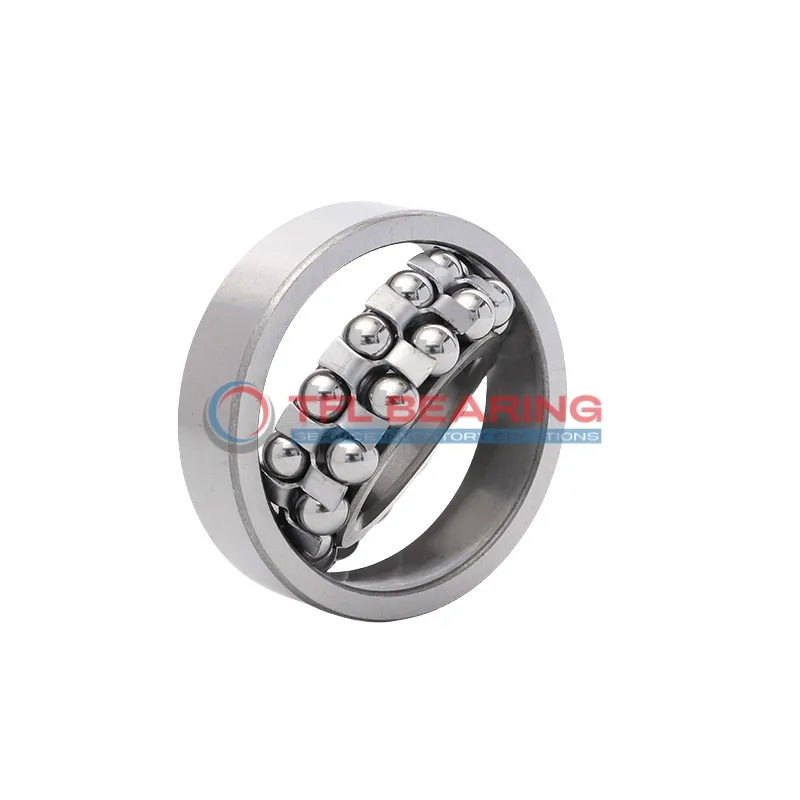

Self Aligning Ball Bearings 1219 C/3

Brand: TFL Bearing Interchangeable: SKF 1219 C/3 95 mm × 170 mm × 32 mm Metric Open
Part number: 1219 C/3
Self Aligning Ball Bearings 1219 C/3
In Stock
US$122.97 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width32 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring120.4 mm
Internal Diameter On Outer Ring148.1 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load14,332 lbf
Static Radial Load6,075 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1219 C/3 is a self-aligning ball bearing with a 95mm bore and 170mm outer diameter, crafted from sturdy chrome steel. Its double-row design efficiently handles radial loads up to 14332 lbf, offering smooth operation at speeds up to 5000 RPM.

The open seal type allows for easy lubrication, while the stainless steel cage enhances durability. It operates reliably in temperatures ranging from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 3.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Performance Features of 1219 C/3 Bearing

1219 C/3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 14332 lbf, ensuring reliable performance in heavy-duty applications.

The double-row design of 1219 C/3 Bearing provides excellent alignment flexibility, reducing stress on the bearing.
Stainless steel cage maintains ball alignment, enhancing durability and smooth operation.

With a maximum speed of 5,000 rpm, 1219 C/3 Bearing balances efficiency and longevity.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1219 C/3 Bearing
1219 C/3 Bearing is commonly used in heavy machinery, such as conveyor systems and large fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under significant radial loads.

In automotive applications, 1219 C/3 Bearing can be found in gearboxes and drivetrains, providing smooth operation even under varying load conditions. Its chrome steel construction offers durability and resistance to wear over time.

For automation equipment, 1219 C/3 Bearing supports robotic arms and assembly line mechanisms, where precision and reliability are key. The open seal type allows for easy lubrication, extending the bearing’s service life.

Where Is 1219 C/3 Bearing Used?
1219 C/3 Bearing is ideal for industrial fans and blowers, handling high radial loads while accommodating slight shaft misalignments. Its robust design makes it suitable for continuous operation in demanding environments.

In printing machinery, 1219 C/3 Bearing ensures smooth rotation of rollers, reducing downtime and maintenance needs. The stainless steel cage adds extra protection against corrosion in humid conditions.

Built for Heavy-Duty Use: 1219 C/3 Bearing
1219 C/3 Bearing excels in construction equipment, such as cranes and excavators, where its ability to handle heavy radial loads is crucial. The lubricated design ensures consistent performance even under extreme conditions.

In agricultural machinery, 1219 C/3 Bearing supports components like harvesters and tractors, providing long-lasting reliability. The metric sizing makes it compatible with a wide range of equipment.
