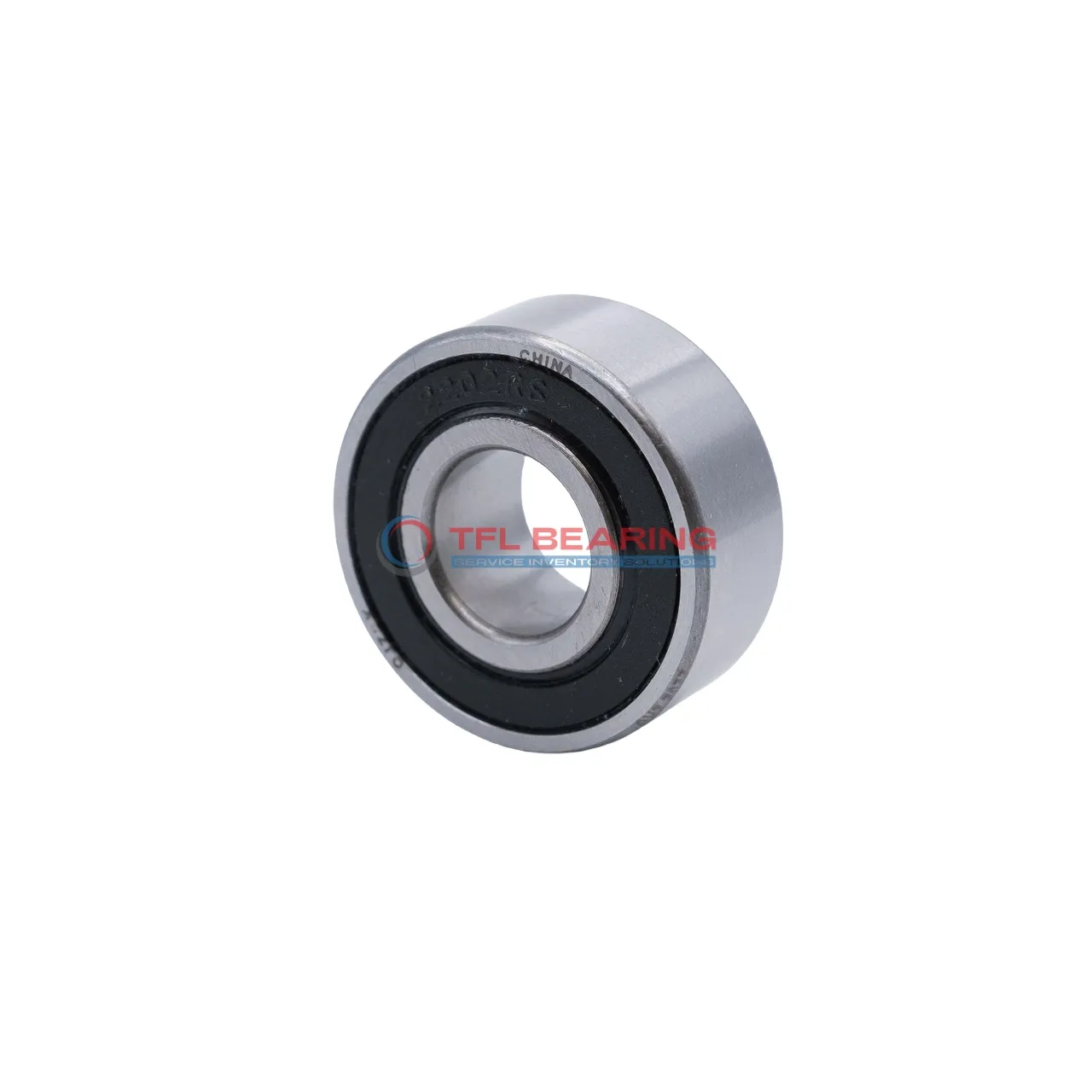

Self Aligning Ball Bearings 2212-K 2RS C/3

Self Aligning Ball Bearings 2212-K 2RS C/3

The 2212-K 2RS C/3 is a self-aligning ball bearing with a 60mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 7020 lbf and operates smoothly at speeds up to 3800 RPM.

Its double-row design and sealed construction help maintain alignment and keep contaminants out, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy installation.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.05kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2212-K 2RS C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 73.2 mm
  • Internal Diameter On Outer Ring 97 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3800 rpm
  • Weight 1.05 kg
  • Price（$） 105.96
Self Aligning Ball Bearings 2212-K 2RS C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2212-K 2RS C/3 Bearing for Precision Tasks?

2212-K 2RS C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 7020 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing contamination risks.
With a maximum speed of 3,800 rpm, it balances performance and durability.

2212-K 2RS C/3 Bearing operates efficiently in temperatures from -30° to 110°C, adapting to various environments.
Its tapered bore design ensures secure fitting and alignment, enhancing reliability.

The lubricated setup minimises maintenance needs, saving time and costs.
Its compact size (60 mm×110 mm×28 mm) makes it ideal for space-constrained installations.

Application

Common Applications of 2212-K 2RS C/3 Bearing
2212-K 2RS C/3 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life even in dusty environments.

In automotive applications, 2212-K 2RS C/3 Bearing is often found in wheel hubs and transmissions, where its double-row construction handles radial loads efficiently. The taper bore design provides a secure fit, reducing slippage under high torque.

For agricultural equipment, 2212-K 2RS C/3 Bearing’s nylon cage and chrome steel components offer reliable performance in harsh conditions. Its ability to withstand moderate speeds makes it suitable for tractors and harvesters.

In food processing machinery, 2212-K 2RS C/3 Bearing’s sealed construction prevents lubricant leakage, maintaining hygiene standards. The temperature range also allows it to perform well in both hot and cold environments.
