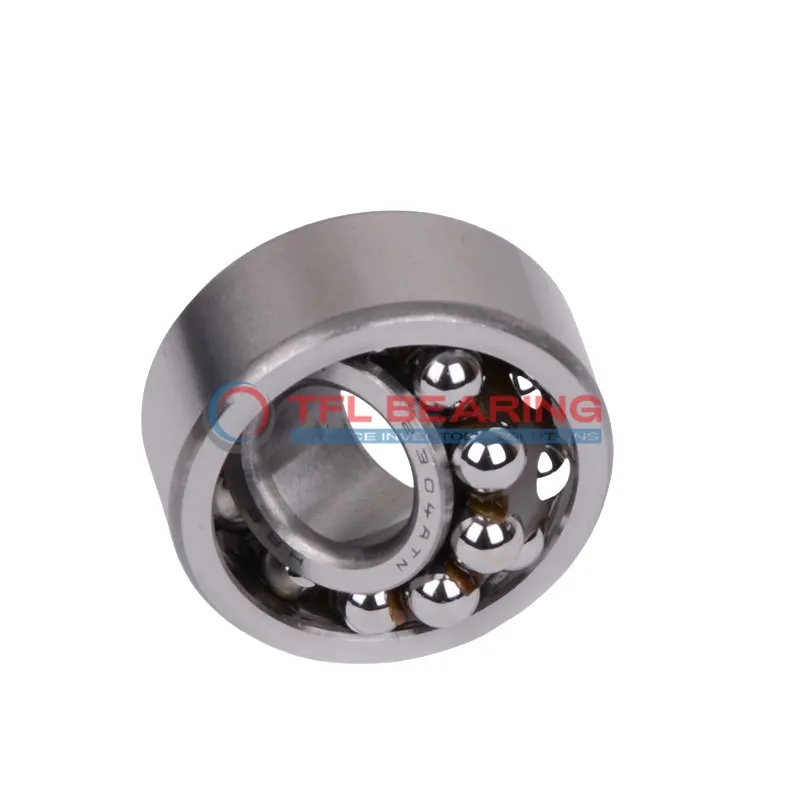

Self Aligning Ball Bearings 2210S

Self Aligning Ball Bearings 2210S

The 2210S is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. Its compact width of 23mm makes it a space-saving choice for various applications.

Designed for radial loads up to 5152 lbf, it handles speeds up to 4800 RPM smoothly. The sealed construction and nylon cage reduce friction and keep contaminants out.

This double-row bearing can tolerate slight misalignments, ideal for setups where shaft positions may shift. It works in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.

Weighing 0.57kg, it’s a robust yet manageable option for industrial machinery or conveyor systems. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF models for hassle-free replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2210S
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.7 mm
  • Internal Diameter On Outer Ring 79.4 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1834 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.57 kg
Self Aligning Ball Bearings 2210S dimension drawing
Download DWG Download PDF

Features

Why Choose 2210S Bearing for Precision Tasks?

2210S Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 5152 lbf makes it suitable for demanding applications where accuracy is key.

The sealed construction and nylon cage reduce friction and protect against contaminants, enhancing performance.
With a maximum speed of 4,800 rpm, it balances speed and reliability in various operational conditions.

2210S Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to different environments.
Its lubricated design ensures smooth operation, reducing maintenance needs and extending service life.

Application

Industrial Uses of 2210S Bearing
2210S Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

In automotive applications, 2210S Bearing fits well in suspension systems and gearboxes, providing reliable radial load support. Its nylon cage reduces vibration and noise, enhancing driving comfort.

For automation equipment, 2210S Bearing works smoothly in robotic arms and assembly lines, thanks to its double-row construction. The lubricated design ensures consistent performance even during prolonged use.

Household appliances like washing machines often use 2210S Bearing for its durability and quiet operation. The chrome steel rings and balls offer a good balance of strength and cost-effectiveness.
