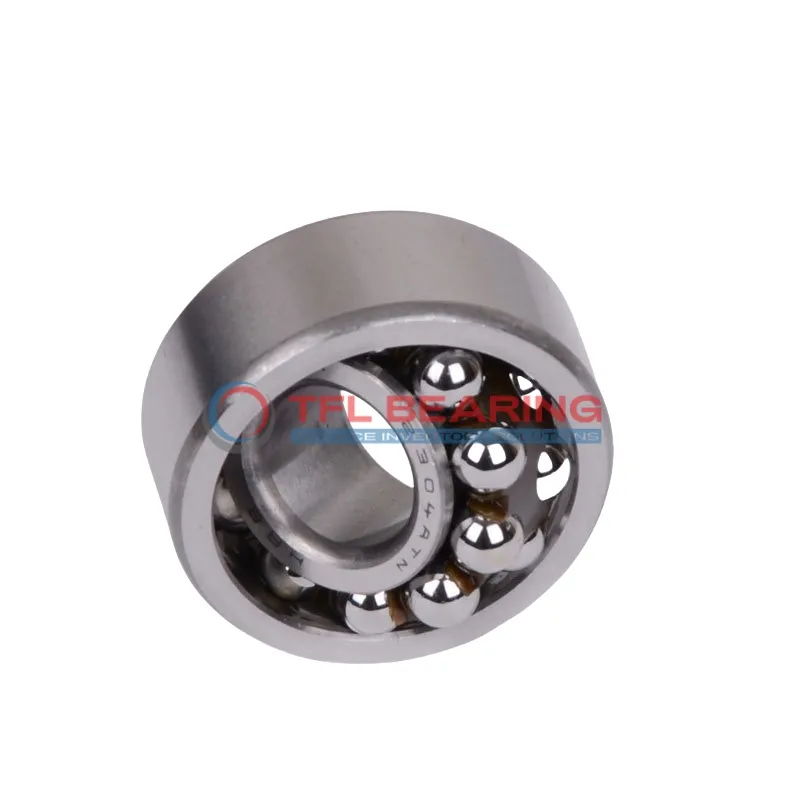

Self Aligning Ball Bearings 2210 KC3

Self Aligning Ball Bearings 2210 KC3

The 2210 KC3 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, designed for radial loads. Its compact 23mm width makes it suitable for tight spaces, while the double-row construction ensures stability.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 5152 lbf and spins smoothly at 4800 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for machinery with slight misalignments, like conveyor systems or agricultural equipment.

Weighing 0.57kg, it’s robust yet easy to handle. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2210 KC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.7 mm
  • Internal Diameter On Outer Ring 79.4 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1834 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.57 kg
  • Price（$） 54.33
Self Aligning Ball Bearings 2210 KC3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2210 KC3 Bearing for Precision Tasks?

2210 KC3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5152 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
This design ensures smooth operation and extends the bearing’s service life.

With a maximum speed of 4,800 rpm, 2210 KC3 Bearing balances performance and durability.
Its C3 radial clearance allows for slight misalignment, ideal for precision tasks.

The temperature range of -30° to 110°C ensures reliable performance in various conditions.
2210 KC3 Bearing is pre-lubricated, reducing maintenance needs and downtime.

Application

Industrial Uses of 2210 KC3 Bearing
The 2210 KC3 Bearing is commonly used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. Its sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2210 KC3 Bearing supports components like drive shafts and transmissions, providing smooth radial load handling. The taper bore design ensures a secure fit, reducing slippage under high torque conditions.

For automation equipment, 2210 KC3 Bearing’s nylon cage reduces friction, making it ideal for robotic arms and precision machinery. The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.

In household appliances like washing machines, 2210 KC3 Bearing’s durability and low maintenance make it a reliable choice. The lubricated design ensures quiet operation, enhancing user comfort.
