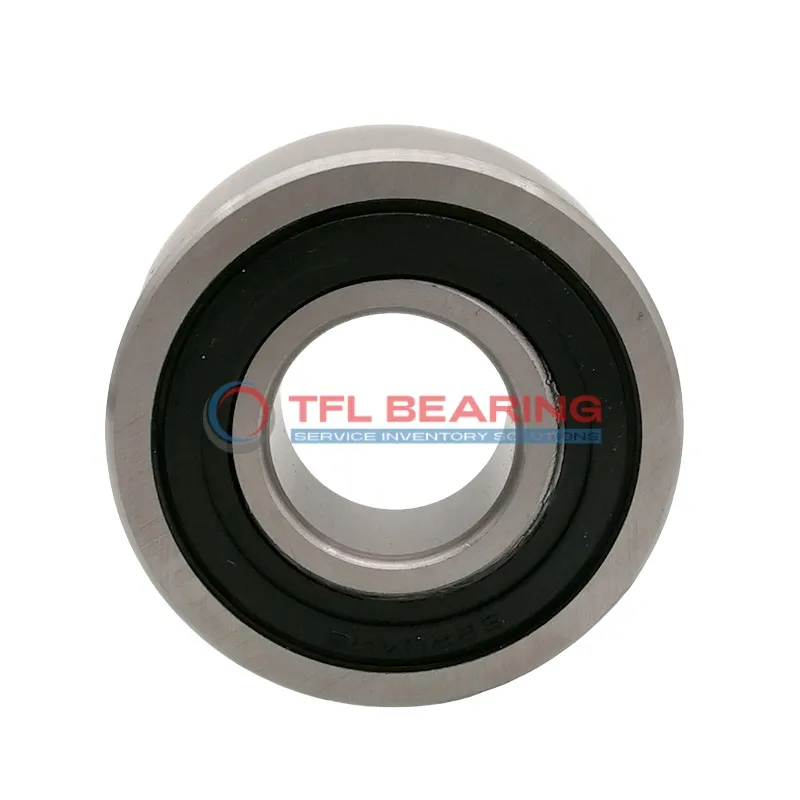

Self Aligning Ball Bearings 2210 E-2RS1TN9

Self Aligning Ball Bearings 2210 E-2RS1TN9

The 2210 E-2RS1TN9 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction help maintain alignment and protect against contaminants, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy installation.

Suitable for applications where misalignment might occur, such as conveyor systems or agricultural machinery. It performs reliably in temperatures from -30°C to 110°C.

Weighing 0.57kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use. Interchangeable with SKF bearings for hassle-free replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2210 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.7 mm
  • Internal Diameter On Outer Ring 79.4 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1834 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.57 kg
  • Price（$） 66.27
Self Aligning Ball Bearings 2210 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 2210 E-2RS1TN9 Bearing for Precision Tasks?

2210 E-2RS1TN9 Bearing features a double-row design, ensuring smooth radial load distribution for precise applications.
The sealed construction keeps contaminants out, maintaining performance in dusty or humid environments.

With chrome steel rings and balls, 2210 E-2RS1TN9 Bearing offers durability and resistance to wear.
Its dynamic radial load capacity of 5152 lbf ensures reliable operation under heavy loads.

The nylon cage in 2210 E-2RS1TN9 Bearing reduces friction, contributing to quieter performance.
Lubricated for life, it requires minimal maintenance, saving time and costs.

2210 E-2RS1TN9 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compact size (50 mm×90 mm×23 mm) makes it suitable for space-constrained applications.

Application

Industrial Uses of 2210 E-2RS1TN9 Bearing
2210 E-2RS1TN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2210 E-2RS1TN9 Bearing fits well in suspension systems, handling radial loads smoothly. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For robotics, 2210 E-2RS1TN9 Bearing’s double-row construction provides stability in articulated joints. The chrome steel balls offer reliable performance in repetitive motion tasks.

Where Is 2210 E-2RS1TN9 Bearing Used?
You’ll find 2210 E-2RS1TN9 Bearing in industrial fans, where its lubricated design ensures smooth rotation. The metric dimensions make it easy to integrate into existing systems.

In household appliances like washing machines, 2210 E-2RS1TN9 Bearing handles unbalanced loads with ease. The sealed construction prevents water and detergent from damaging the bearing.

Built for Heavy-Duty Use: 2210 E-2RS1TN9 Bearing
2210 E-2RS1TN9 Bearing excels in construction equipment, where its high dynamic load capacity is essential. The chrome steel rings withstand harsh working conditions.

In agricultural machinery, 2210 E-2RS1TN9 Bearing’s self-aligning capability adapts to uneven loads. The nylon cage resists corrosion from moisture and chemicals.

Automotive vs Aerospace: Applications of 2210 E-2RS1TN9 Bearing
In cars, 2210 E-2RS1TN9 Bearing supports drivetrain components, offering quiet operation. Its sealed design is ideal for road debris protection.

For aircraft auxiliary systems, 2210 E-2RS1TN9 Bearing’s lightweight construction helps reduce overall weight. The temperature range ensures performance in varying climates.
