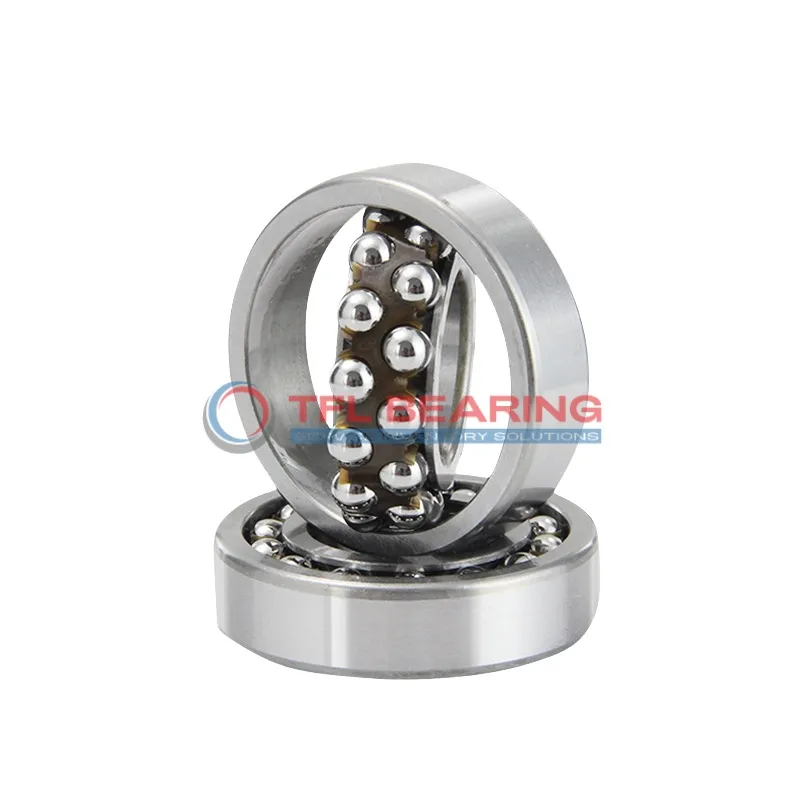

Self Aligning Ball Bearings 2208C3

Self Aligning Ball Bearings 2208C3

The 2208C3 is a self-aligning ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4478 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.5kg, it’s a robust yet manageable option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2208C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 49 mm
  • Internal Diameter On Outer Ring 69.8 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4478 lbf
  • Static Radial Load 1564 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.5 kg
  • Price（$） 41.25
Self Aligning Ball Bearings 2208C3 dimension drawing
Download DWG Download PDF

Features

Engineered for Precision: 2208C3 Bearing

2208C3 Bearing features a double-row design, enhancing its radial load capacity for smoother operation.
The chrome steel construction ensures durability, while the nylon cage reduces friction and noise.

With a dynamic radial load capacity of 4478 lbf, 2208C3 Bearing handles demanding applications effortlessly.
Its sealed design keeps contaminants out, maintaining performance in dusty or humid environments.

2208C3 Bearing operates efficiently at speeds up to 5,600 rpm, balancing speed and reliability.
The C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.

Application

Industrial Uses of 2208C3 Bearing
2208C3 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

What Makes 2208C3 Bearing a Preferred Choice?
In conveyor systems, 2208C3 Bearing handles radial loads smoothly, thanks to its double-row ball construction. The nylon cage reduces friction, making it energy-efficient for continuous operation.

Perfect Fit for Automation: 2208C3 Bearing
2208C3 Bearing works well in robotic arms, where its ability to adjust to shaft deflections ensures precise movement. The lubricated design requires minimal maintenance, ideal for high-use automation setups.

Automotive vs Industrial: Applications of 2208C3 Bearing
In vehicle alternators, 2208C3 Bearing provides reliable performance under varying loads. Its C3 radial clearance also makes it suitable for industrial pumps where thermal expansion is a factor.

Where Is 2208C3 Bearing Used?
You’ll find 2208C3 Bearing in household appliances like washing machines, where its sealed construction resists water and detergent. The chrome steel rings offer durability for daily use.
