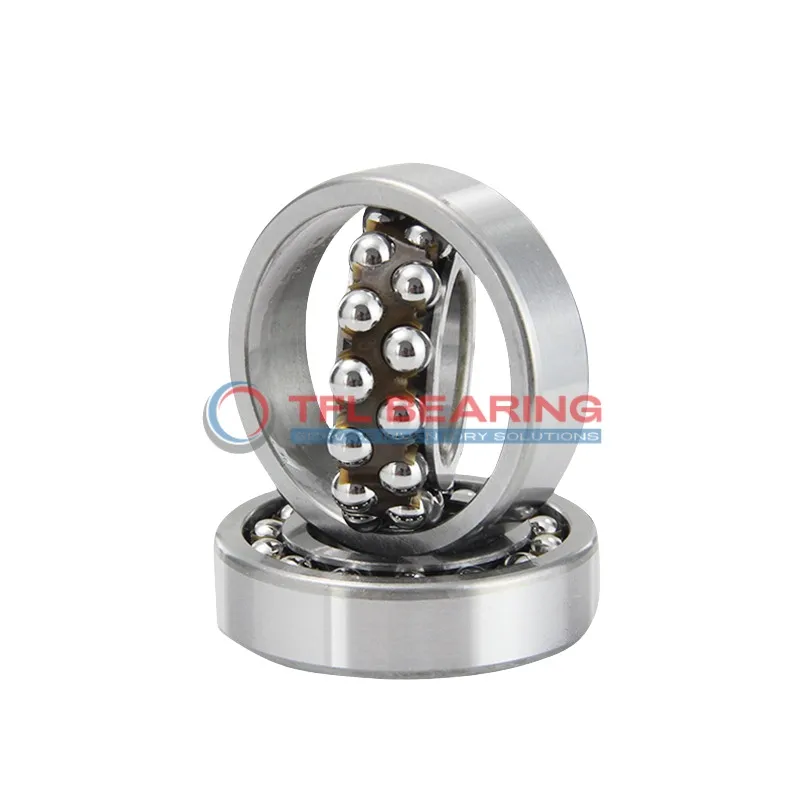

Self Aligning Ball Bearings 2208-TVH

Self Aligning Ball Bearings 2208-TVH

The 2208-TVH is a self-aligning ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4478 lbf and operates smoothly at speeds up to 5600 RPM.
Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The double-row construction helps it handle misalignment in applications.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for machinery like conveyors or fans where slight shaft misalignment may occur.
Weighing 0.5kg, it’s robust yet easy to handle. Compliant with RoHS and REACH standards for safe use in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2208-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 49 mm
  • Internal Diameter On Outer Ring 69.8 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4478 lbf
  • Static Radial Load 1564 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.5 kg
  • Price（$） 41.11
Self Aligning Ball Bearings 2208-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2208-TVH Bearing for Precision Tasks?

2208-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 4478 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
This design ensures smooth operation and extends the bearing’s service life.

With a maximum speed of 5,600 rpm, 2208-TVH Bearing balances performance and durability.
Its temperature range of -30° to 110°C allows for reliable use in various environments.

The lubricated design minimises maintenance needs, making it a practical choice.
2208-TVH Bearing’s cylindrical bore ensures easy installation and alignment.

Application

Industrial Uses of 2208-TVH Bearing
2208-TVH Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2208-TVH Bearing fits well in wheel hubs and transmissions, thanks to its double-row construction handling radial loads efficiently. The nylon cage reduces friction, making it quieter during operation.

For household appliances like washing machines, 2208-TVH Bearing’s lubricated design ensures smooth spinning cycles. Its chrome steel balls provide durability even with frequent use.

Where Is 2208-TVH Bearing Used?
You’ll often find 2208-TVH Bearing in industrial fans, where its ability to handle misalignment prevents premature wear. The metric sizing makes it easy to replace in existing setups.

In robotics, 2208-TVH Bearing supports joint movements with its reliable radial load capacity. The temperature range suits both indoor and outdoor automated systems.

Built for Heavy-Duty Use: 2208-TVH Bearing
2208-TVH Bearing works well in agricultural machinery, enduring rough conditions while maintaining performance. The sealed construction protects against dirt and moisture.

For printing equipment, 2208-TVH Bearing’s precision ensures consistent paper feed. Its nylon cage minimises vibration, reducing noise in office environments.

Light-Duty vs Heavy-Duty: Best Uses for 2208-TVH Bearing
In light-duty scenarios like small electric motors, 2208-TVH Bearing offers smooth rotation with minimal maintenance. The lubricated design extends its lifespan.

For heavy-duty tasks like construction equipment, 2208-TVH Bearing’s robust build handles high radial loads. The chrome steel rings resist deformation under stress.
