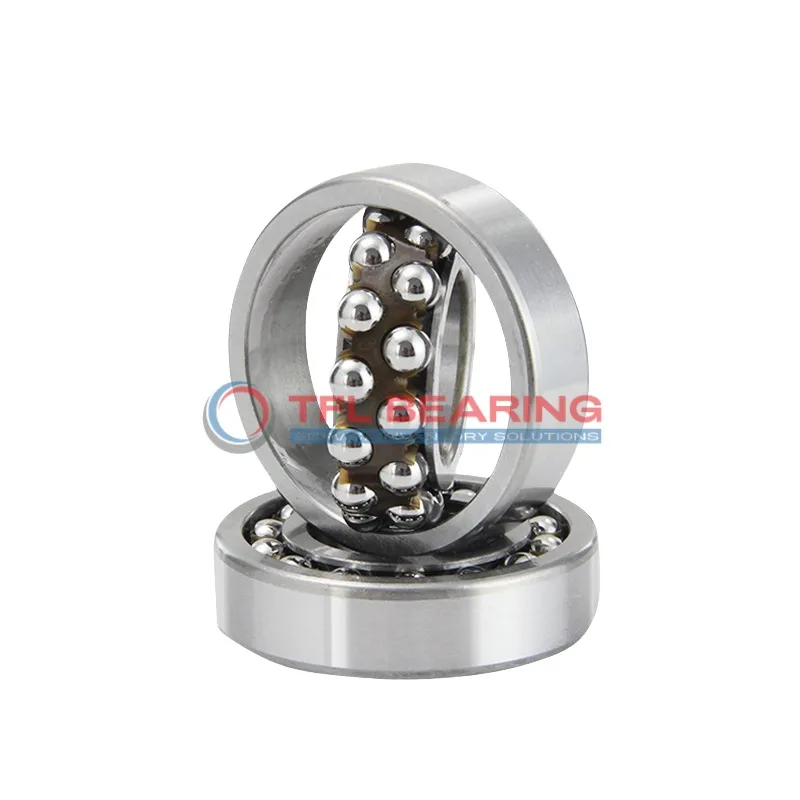

Self Aligning Ball Bearings 2208-K C/3

Brand: TFL Bearing Interchangeable: SKF 2208-K C/3 40 mm × 80 mm × 23 mm Metric Sealed
Part number: 2208-K C/3
Self Aligning Ball Bearings 2208-K C/3
In Stock
US$43.36 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring49 mm
Internal Diameter On Outer Ring69.8 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load4,478 lbf
Static Radial Load1,564 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2208-K C/3 is a self-aligning ball bearing with a 40mm tapered bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4478 lbf and operates smoothly at speeds reaching 5600 RPM.

Its double-row design and sealed construction help maintain alignment and protect against contaminants, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy use and performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.5kg, it’s a robust yet manageable choice for industrial settings. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Features

Why Choose 2208-K C/3 Bearing for Precision Tasks?

2208-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 4478 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage reduce friction, enhancing smooth operation.
With a maximum speed of 5,600 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2208-K C/3 Bearing
2208-K C/3 Bearing is commonly used in industrial machinery, especially in conveyor systems and material handling equipment. Its self-aligning feature helps accommodate misalignment, ensuring smooth operation even under radial loads.

Where Is 2208-K C/3 Bearing Used?
You’ll often find 2208-K C/3 Bearing in automotive applications like wheel hubs and transmissions. Its sealed design keeps contaminants out, making it reliable for long-term use in harsh conditions.

Perfect Fit for Automation: 2208-K C/3 Bearing
2208-K C/3 Bearing works well in robotic arms and automated assembly lines. The double-row construction provides stability, while the nylon cage reduces friction for quieter performance.

Light-Duty vs Heavy-Duty: Best Uses for 2208-K C/3 Bearing
2208-K C/3 Bearing is versatile, handling both light-duty tasks in household appliances and heavy-duty roles in industrial fans. Its chrome steel rings and lubricated design ensure durability across different applications.
