Self Aligning Ball Bearings 2207E-K 2RS

Brand: TFL Bearing Interchangeable: SKF 2207E-K 2RS 35 mm × 72 mm × 23 mm Metric Sealed
Part number: 2207E-K 2RS
Self Aligning Ball Bearings 2207E-K 2RS
In Stock
US$62.60 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.013mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring42.7 mm
Internal Diameter On Outer Ring62.69 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load4,275 lbf
Static Radial Load1,350 lbf
Temperature Range-30° to 110 °C
Max Speed6,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.41 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant

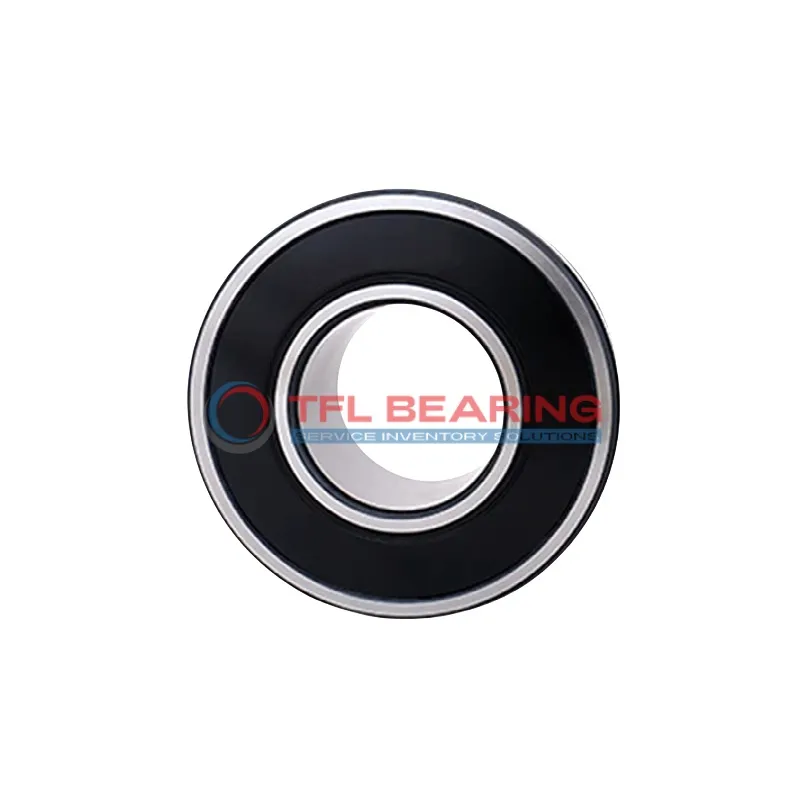

Dimension drawing · click to enlarge

Description

The 2207E-K 2RS is a self-aligning ball bearing with a 35mm tapered bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4275 lbf and runs smoothly at speeds up to 6300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing comes pre-lubricated for easy installation.

This model fits well in applications where slight shaft misalignment occurs, such as conveyor systems or agricultural machinery. It operates in temperatures from -30°C to 110°C.

Weighing 0.41kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Features

Why Choose 2207E-K 2RS Bearing for Precision Tasks?

2207E-K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 4275 lbf makes it suitable for applications requiring accuracy and durability.

The sealed construction and nylon cage help maintain smooth operation by keeping contaminants out.
With a maximum speed of 6,300 rpm, it balances performance and longevity in various conditions.

2207E-K 2RS Bearing’s tapered bore design simplifies installation, reducing setup time.
Its temperature range of -30° to 110°C ensures reliable performance in diverse environments.

Application

Common Applications of 2207E-K 2RS Bearing
In industrial settings, 2207E-K 2RS Bearing is commonly used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, ensuring longer service life.

Where Is 2207E-K 2RS Bearing Used?
You’ll often find 2207E-K 2RS Bearing in automotive applications like wheel hubs and transmissions, where its double-row design handles radial loads efficiently. The taper bore ensures a secure fit, reducing slippage during operation.

Built for Heavy-Duty Use: 2207E-K 2RS Bearing
This bearing is a reliable choice for agricultural machinery, such as tractors and harvesters, thanks to its robust chrome steel construction. The nylon cage reduces friction, making it suitable for high-speed operations.

Automotive vs Industrial: Applications of 2207E-K 2RS Bearing
In automotive systems, 2207E-K 2RS Bearing supports smooth rotation in drivetrains, while in industrial gearboxes, it handles varying loads with ease. Its versatility makes it a go-to for both sectors.

Perfect Fit for Automation: 2207E-K 2RS Bearing
For robotic arms and automated assembly lines, 2207E-K 2RS Bearing offers precise movement and low maintenance. The lubricated design ensures consistent performance even in continuous use.
