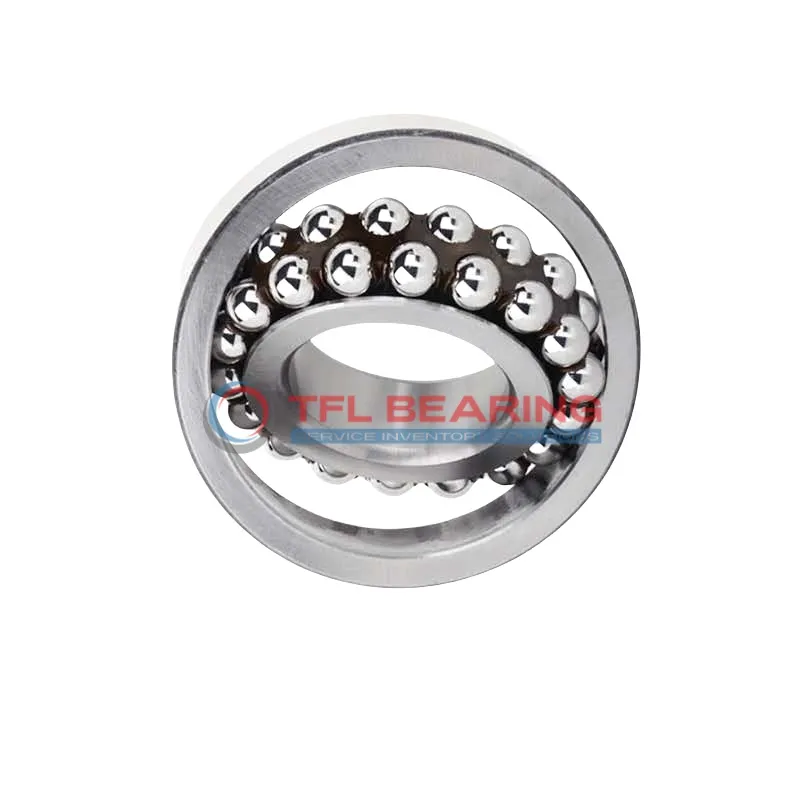

Self Aligning Ball Bearings 2207-K-TVH-C3

Self Aligning Ball Bearings 2207-K-TVH-C3

The 2207-K-TVH-C3 is a self-aligning ball bearing with a 35mm tapered bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4275 lbf and runs smoothly at speeds up to 6300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing comes pre-lubricated for easy installation.

With a C3 radial clearance, it handles slight misalignments well, making it suitable for applications like conveyor systems or agricultural machinery. It operates in temperatures from -30°C to 110°C.

Weighing 0.41kg, it’s a robust yet manageable choice for industrial use. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for hassle-free replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2207-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 42.7 mm
  • Internal Diameter On Outer Ring 62.69 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4275 lbf
  • Static Radial Load 1350 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 0.41 kg
  • Price（$） 40.55
Self Aligning Ball Bearings 2207-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2207-K-TVH-C3 Bearing for Precision Tasks?

2207-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 4275 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing maintenance needs.
With a maximum speed of 6,300 rpm, it balances performance and durability.

2207-K-TVH-C3 Bearing’s C3 radial clearance allows for slight misalignment, enhancing its versatility.
The tapered bore design ensures secure fitting, preventing slippage during operation.

Application

Industrial Uses of 2207-K-TVH-C3 Bearing
2207-K-TVH-C3 Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life even in dusty environments.

What Makes 2207-K-TVH-C3 Bearing a Preferred Choice?
In automotive applications like wheel hubs, 2207-K-TVH-C3 Bearing handles radial loads smoothly thanks to its double-row construction. The tapered bore provides a secure fit, reducing slippage during high-speed rotation.

Perfect Fit for Automation: 2207-K-TVH-C3 Bearing
This bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The nylon cage reduces friction, allowing for quieter operation in sensitive environments.

Medical vs Industrial: Where 2207-K-TVH-C3 Bearing Excels
While 2207-K-TVH-C3 Bearing is robust enough for heavy machinery, its sealed design also makes it suitable for medical devices like centrifuges. The chrome steel construction ensures consistent performance under varying loads.

Light-Duty vs Heavy-Duty: Best Uses for 2207-K-TVH-C3 Bearing
For light-duty applications like small electric motors, 2207-K-TVH-C3 Bearing offers smooth rotation. In heavier setups like pumps, its dynamic load capacity ensures durability under constant use.
