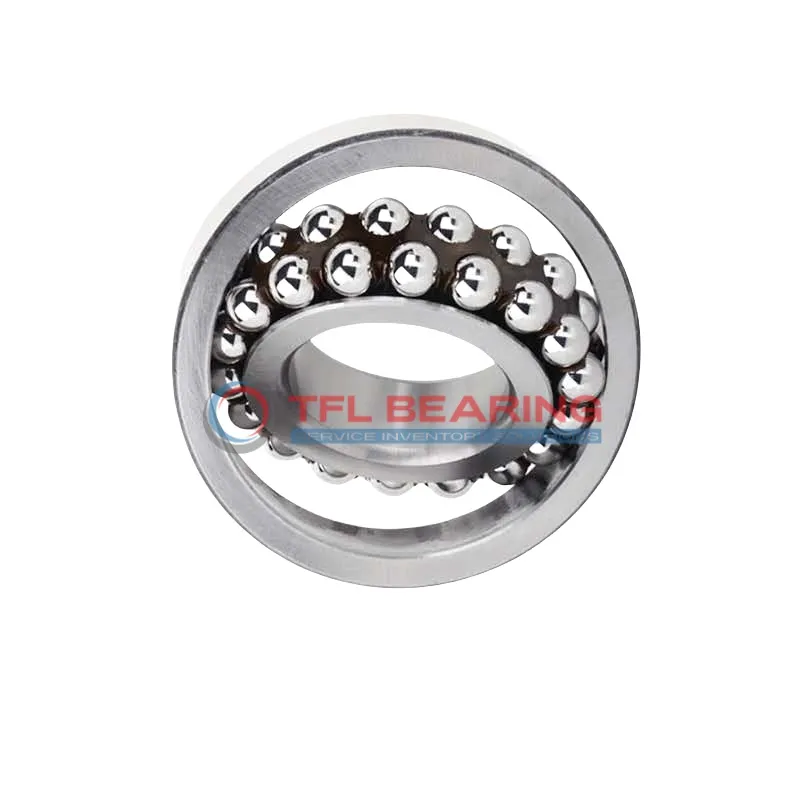

Self Aligning Ball Bearings 2207 EKTN9/C3

Self Aligning Ball Bearings 2207 EKTN9/C3

The 2207 EKTN9/C3 is a self-aligning ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6795 lbf and operates smoothly at speeds up to 12,000 RPM.

Its double-row design and open construction allow for easy lubrication and maintenance, while the nylon cage reduces friction. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.4kg, it offers a good balance of strength and weight. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2207 EKTN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 45.3 mm
  • Internal Diameter On Outer Ring 62.9 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 6795 lbf
  • Static Radial Load 1980 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.4 kg
  • Price（$） 40.82
Self Aligning Ball Bearings 2207 EKTN9/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2207 EKTN9/C3 Bearing

2207 EKTN9/C3 Bearing is designed with a double-row construction, offering enhanced load distribution for radial applications.
Its chrome steel rings and balls provide durability and resistance to wear under dynamic radial loads up to 6795 lbf.

The nylon cage ensures smooth operation and reduces friction, contributing to quieter performance.
With a maximum speed of 12,000 rpm, it balances efficiency and reliability in various conditions.

2207 EKTN9/C3 Bearing operates effectively within a temperature range of -30° to 110°C, suitable for diverse environments.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under load.

Application

Industrial Uses of 2207 EKTN9/C3 Bearing
The 2207 EKTN9/C3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, such as conveyor systems and pumps. Its double-row design ensures reliable performance even under heavy radial loads.

In automotive applications, 2207 EKTN9/C3 Bearing fits well in gearboxes and drivetrains, providing smooth operation and durability. The taper bore design allows for secure mounting, making it a dependable choice for high-speed rotations.

For automation and robotics, 2207 EKTN9/C3 Bearing offers precise movement in robotic arms and automated assembly lines. The nylon cage reduces friction, enhancing efficiency in repetitive tasks.

In household appliances like washing machines, 2207 EKTN9/C3 Bearing ensures quiet and stable operation. Its chrome steel construction provides long-lasting performance in everyday use.

Medical equipment benefits from 2207 EKTN9/C3 Bearing’s reliability in devices like diagnostic machines. The C3 clearance ensures smooth operation even under varying temperatures.
