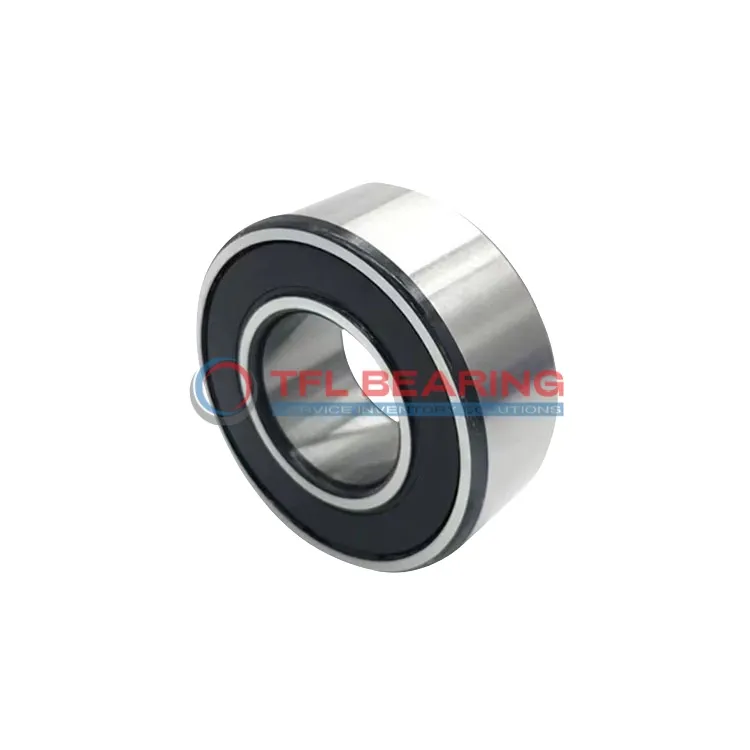

Self Aligning Ball Bearings 2206E-K 2RS C/3

Self Aligning Ball Bearings 2206E-K 2RS C/3

The 2206E-K 2RS C/3 is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. Its compact 20mm width makes it suitable for tight spaces, while the double-row construction enhances stability.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 3510 lbf and spins smoothly at 7500 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Its self-aligning feature compensates for minor misalignments, ideal for applications like conveyor systems or agricultural machinery. The bearing operates reliably in temperatures from -30°C to 110°C.

Weighing 0.26kg, it’s a durable yet lightweight option. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206E-K 2RS C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 58.61
Self Aligning Ball Bearings 2206E-K 2RS C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2206E-K 2RS C/3 Bearing for Precision Tasks?

2206E-K 2RS C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 3510 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide protection against contaminants while reducing noise.
This design also helps maintain smooth operation even at speeds up to 7,500 rpm.

With a temperature range of -30° to 110°C, 2206E-K 2RS C/3 Bearing performs reliably in various environments.
Its tapered bore ensures secure fitting, reducing the risk of slippage during operation.

Application

Industrial Uses of 2206E-K 2RS C/3 Bearing
2206E-K 2RS C/3 Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

What Makes 2206E-K 2RS C/3 Bearing a Preferred Choice?
In automotive applications, 2206E-K 2RS C/3 Bearing fits well in wheel hubs and transmission systems due to its radial load capacity. The nylon cage reduces friction, making it quieter for passenger vehicles.

Perfect Fit for Automation: 2206E-K 2RS C/3 Bearing
This bearing works smoothly in robotic arms and assembly line equipment, thanks to its double-row construction. The lubricated design ensures consistent performance even during continuous operation.

Medical vs Industrial: Where 2206E-K 2RS C/3 Bearing Excels
While suitable for industrial pumps, 2206E-K 2RS C/3 Bearing also meets medical device needs like dental drills, where precision and reliability are key. The chrome steel balls provide durability under frequent use.

Light-Duty vs Heavy-Duty: Best Uses for 2206E-K 2RS C/3 Bearing
From small electric motors to heavy machinery, 2206E-K 2RS C/3 Bearing adapts well. Its tapered bore ensures a secure fit, preventing slippage in high-torque applications.
