Self Aligning Ball Bearings 2206 K 2RS

Brand: TFL Bearing Interchangeable: SKF 2206 K 2RS 30 mm × 62 mm × 20 mm Metric Sealed
Part number: 2206 K 2RS
Self Aligning Ball Bearings 2206 K 2RS
In Stock
US$39.43 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.013mm to 0
Width20 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring36.7 mm
Internal Diameter On Outer Ring54.06 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,510 lbf
Static Radial Load1,046 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.26 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant

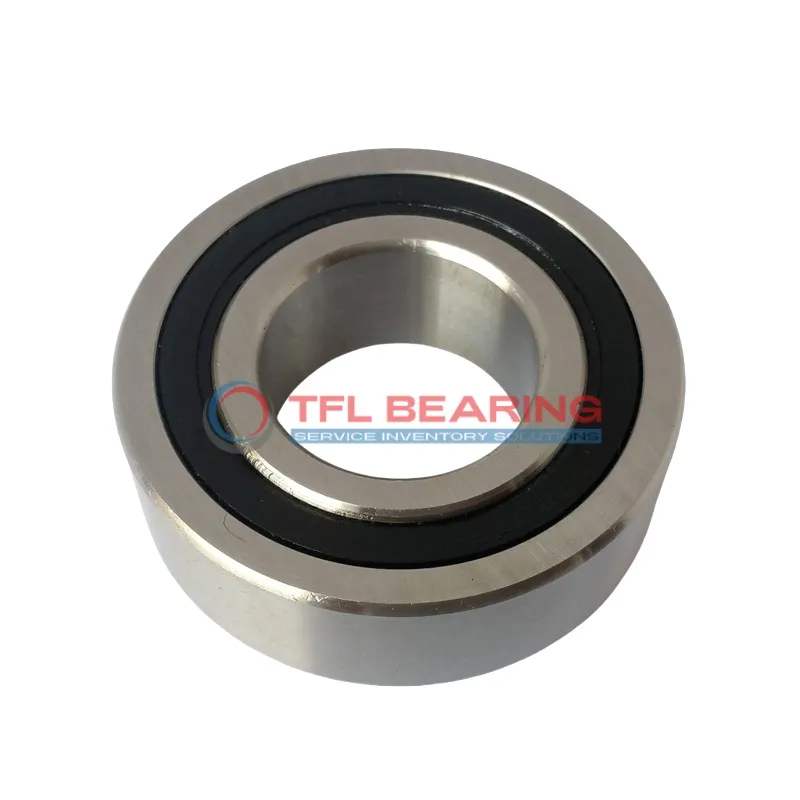

Dimension drawing · click to enlarge

Description

The 2206 K 2RS is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 3510 lbf while spinning smoothly at 7500 RPM.

The nylon cage reduces friction, and the built-in lubrication ensures long-lasting performance. It operates well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like conveyor systems or agricultural machinery where slight misalignments may occur.

Weighing 0.26kg, it’s a robust yet manageable choice for industrial use. Compliant with RoHS and REACH standards for safety and environmental care.

Features

Why Choose 2206 K 2RS Bearing for Precision Tasks?

2206 K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3510 lbf makes it suitable for demanding applications.

The sealed design and nylon cage reduce friction and protect against contaminants.
This extends the bearing’s service life while maintaining smooth operation.

2206 K 2RS Bearing operates efficiently in temperatures from -30° to 110°C.
Its tapered bore design ensures secure fitting, ideal for high-speed applications up to 7,500 rpm.

Application

Industrial Uses of 2206 K 2RS Bearing
2206 K 2RS Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2206 K 2RS Bearing works well in wheel hubs and transmissions, handling radial loads smoothly. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For automation equipment, 2206 K 2RS Bearing supports robotic arms with reliable performance. The double-row construction provides stability, even during rapid movements.

In household appliances like washing machines, 2206 K 2RS Bearing offers quiet operation. The lubricated design ensures minimal maintenance, perfect for daily use.
