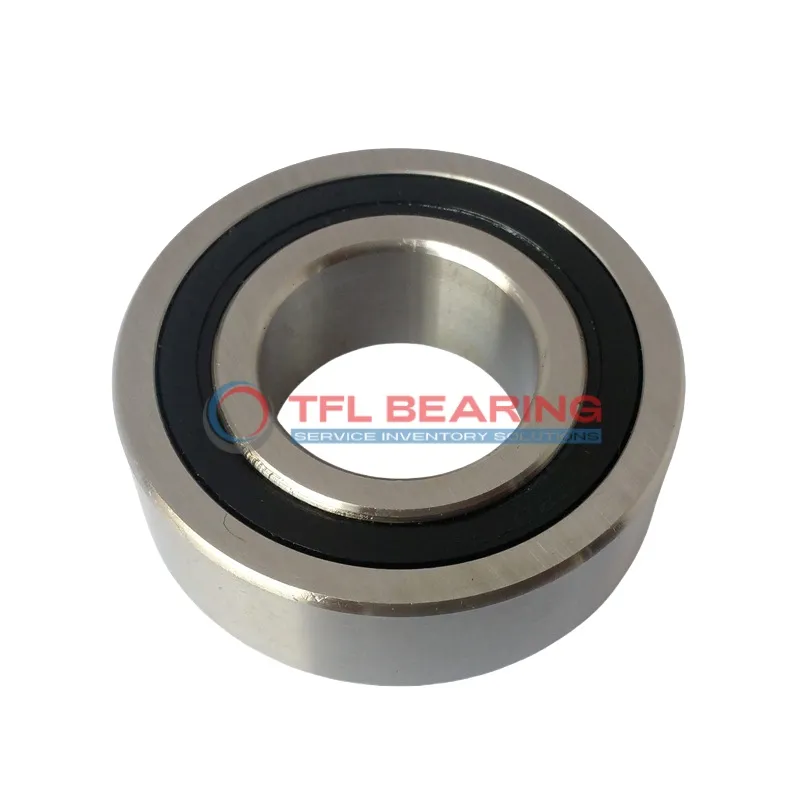

Self Aligning Ball Bearings 2206-K-2RS-TVH-C3

Self Aligning Ball Bearings 2206-K-2RS-TVH-C3

The 2206-K-2RS-TVH-C3 is a self-aligning ball bearing with a 30mm tapered bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and operates smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction keep dirt out while the nylon cage reduces friction. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model fits SKF equivalents, making replacements straightforward. Perfect for machinery with slight misalignments, like conveyor systems or agricultural equipment.

Weighing 0.26kg, it offers a good balance of strength and lightness. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206-K-2RS-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 40.38
Self Aligning Ball Bearings 2206-K-2RS-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2206-K-2RS-TVH-C3 Bearing for Precision Tasks?

2206-K-2RS-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 3510 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage provide smooth operation and reduce contamination risks.
With a maximum speed of 7,500 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2206-K-2RS-TVH-C3 Bearing
2206-K-2RS-TVH-C3 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature helps compensate for misalignment. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

Where Is 2206-K-2RS-TVH-C3 Bearing Used?
In automotive applications, 2206-K-2RS-TVH-C3 Bearing fits well in gearboxes and wheel hubs, thanks to its radial load capacity and tapered bore. The nylon cage reduces noise, making it suitable for smoother rides.

Perfect Fit for Automation: 2206-K-2RS-TVH-C3 Bearing
For robotics and automated systems, 2206-K-2RS-TVH-C3 Bearing offers reliable performance in mechanical arms and linear guides. Its C3 clearance allows for slight thermal expansion during continuous operation.

Medical vs Industrial: Where 2206-K-2RS-TVH-C3 Bearing Excels
In medical devices like imaging equipment, 2206-K-2RS-TVH-C3 Bearing provides quiet and precise movement. Meanwhile, in industrial settings, its durability shines in heavy-duty pumps and compressors.

Essential Roles of 2206-K-2RS-TVH-C3 Bearing
2206-K-2RS-TVH-C3 Bearing is a go-to choice for household appliances like washing machines, where its sealed construction prevents water damage. The chrome steel rings ensure it handles daily wear with ease.
