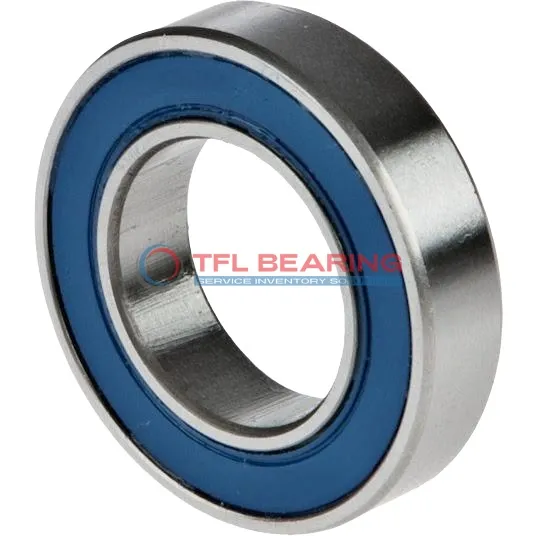

Single Row Deep Groove Ball Bearings 6207-2RS1/C3 GJN EXPLORER

Single Row Deep Groove Ball Bearings 6207-2RS1/C3 GJN EXPLORER

The 6207-2RS1/C3 is a sealed deep groove ball bearing with a 35mm bore and 72mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 5778 lbf and spins smoothly at speeds up to 9200 RPM.
Its double-sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.
This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for electric motors, pumps, or industrial gearboxes where reliability matters.
Weighing 288g, it’s a robust yet compact choice for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-2RS1/C3 GJN EXPLORER
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 6.48
Single Row Deep Groove Ball Bearings 6207-2RS1/C3 GJN EXPLORER dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207-2RS1/C3 GJN EXPLORER Bearing

6207-2RS1/C3 GJN EXPLORER Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 5778 lbf.

Its sealed design protects against dust and moisture, ensuring reliable performance in various environments.

The C3 radial clearance allows for thermal expansion, making it suitable for high-speed applications up to 9,200 rpm.

With a temperature range of -30°C to 120°C, it performs well in both cold and warm conditions.

Application

Common Applications of 6207-2RS1/C3 GJN EXPLORER Bearing
In industrial settings, 6207-2RS1/C3 GJN EXPLORER Bearing is a go-to for conveyor systems and electric motors, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures it handles radial loads with ease.

Where Is 6207-2RS1/C3 GJN EXPLORER Bearing Used?
You’ll often spot 6207-2RS1/C3 GJN EXPLORER Bearing in automotive applications like alternators and water pumps, where its C3 clearance accommodates thermal expansion. It’s also a reliable choice for farm machinery due to its durability.

Built for Heavy-Duty Use: 6207-2RS1/C3 GJN EXPLORER Bearing
This bearing shines in washing machines and other household appliances, where its sealed design prevents grease leakage. The metric sizing makes it a versatile fit for various European and Asian equipment.

Automotive vs Industrial: Applications of 6207-2RS1/C3 GJN EXPLORER Bearing
In cars, 6207-2RS1/C3 GJN EXPLORER Bearing supports smooth rotation in gearboxes, while in factories, it’s trusted for pulley systems. Its temperature range (-30° to 120°C) suits both environments.
