Self Aligning Ball Bearings 2206 E-2RS1TN9

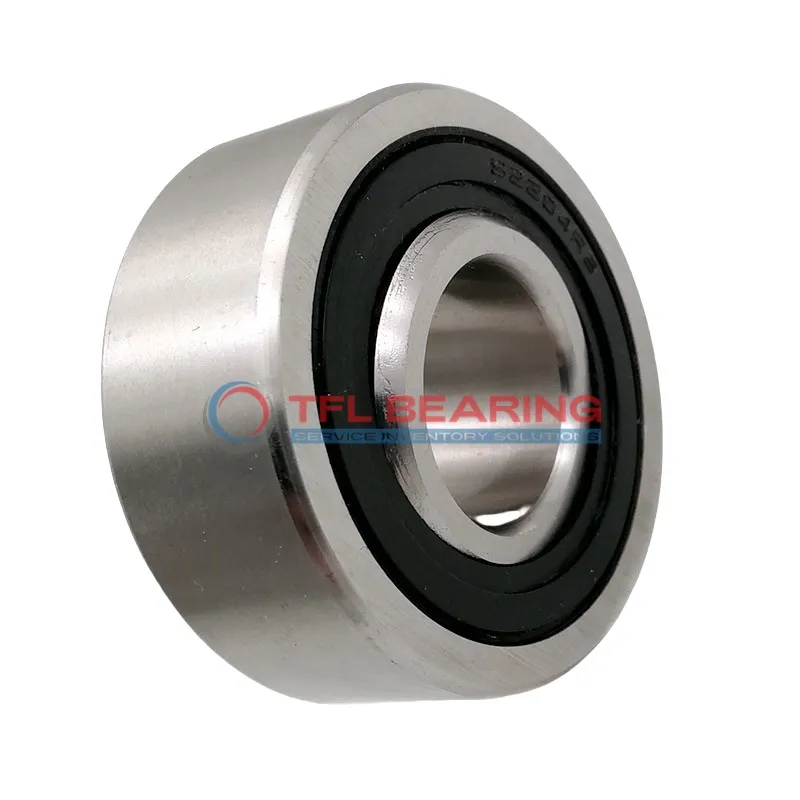

Self Aligning Ball Bearings 2206 E-2RS1TN9

The 2206 E-2RS1TN9 is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 3510 lbf while spinning smoothly at 7500 RPM.

The nylon cage reduces friction, and the built-in lubrication ensures quiet operation. It works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making replacements straightforward. It’s well-suited for machinery where slight misalignment might occur, such as conveyor systems or agricultural equipment.

Weighing 0.26kg, it’s a robust yet manageable choice for industrial applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 38.14
Self Aligning Ball Bearings 2206 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

How Is 2206 E-2RS1TN9 Bearing Engineered for Reliability?

2206 E-2RS1TN9 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 3510 lbf, making it suitable for various industrial applications.

The sealed construction and nylon cage help maintain smooth operation while reducing contamination risks.
With a maximum speed of 7,500 rpm, it balances performance and durability in demanding conditions.

2206 E-2RS1TN9 Bearing operates efficiently within a temperature range of -30° to 110°C, ensuring versatility.
Its pre-lubricated design minimises maintenance needs, providing long-term reliability.

Application

Industrial Uses of 2206 E-2RS1TN9 Bearing
2206 E-2RS1TN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2206 E-2RS1TN9 Bearing fits well in wheel hubs and transmissions, providing smooth radial load support. Its nylon cage reduces noise, making it ideal for passenger vehicles.

For robotics, 2206 E-2RS1TN9 Bearing offers reliable performance in joint mechanisms, thanks to its double-row construction. The lubricated design ensures consistent operation even in high-speed automation tasks.

What Makes 2206 E-2RS1TN9 Bearing a Preferred Choice?
2206 E-2RS1TN9 Bearing stands out in household appliances like washing machines, where its durability handles frequent load changes. The chrome steel rings resist wear, extending the appliance’s lifespan.

In industrial fans, 2206 E-2RS1TN9 Bearing’s ability to handle radial loads makes it a go-to choice. The temperature range suits both indoor and outdoor installations, from factories to HVAC systems.

Built for Heavy-Duty Use: 2206 E-2RS1TN9 Bearing
2206 E-2RS1TN9 Bearing excels in construction equipment, where its robust design withstands heavy loads and vibrations. The sealed protection is particularly useful in harsh, debris-filled sites.

For medical devices like centrifuges, 2206 E-2RS1TN9 Bearing ensures precise rotation with minimal maintenance. Its compliance with RoHS and REACH standards makes it safe for sensitive environments.
