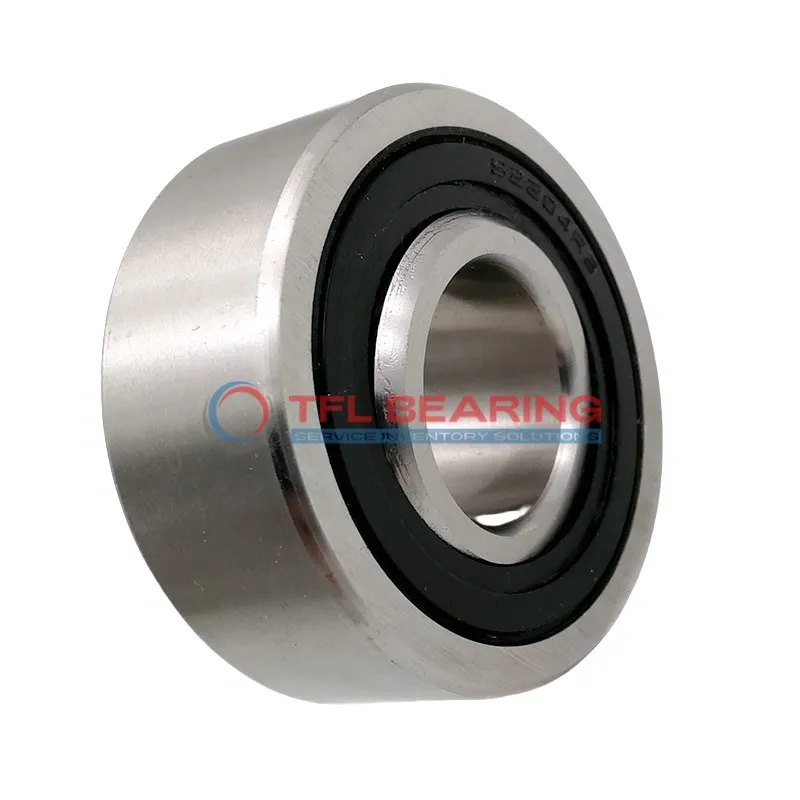

Self Aligning Ball Bearings 2206 E-2RS1KTN9/C3

Brand: TFL Bearing Interchangeable: SKF 2206 E-2RS1KTN9/C3 30 mm × 62 mm × 20 mm Metric Sealed
Part number: 2206 E-2RS1KTN9/C3
Self Aligning Ball Bearings 2206 E-2RS1KTN9/C3
In Stock
US$73.74 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.013mm to 0
Width20 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring36.7 mm
Internal Diameter On Outer Ring54.06 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,510 lbf
Static Radial Load1,046 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.26 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2206 E-2RS1KTN9/C3 is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and operates smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction help it stay clean and aligned, even in uneven setups. The nylon cage reduces friction, making it run quietly and efficiently.

This bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.26kg, it’s a robust choice for machinery like conveyors or fans where misalignment might occur. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 2206 E-2RS1KTN9/C3 Bearing for Precision Tasks?

2206 E-2RS1KTN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 3510 lbf makes it suitable for demanding applications.

The sealed design and nylon cage reduce friction and protect against contaminants, enhancing longevity.
With a maximum speed of 7,500 rpm, it delivers consistent performance in various conditions.

2206 E-2RS1KTN9/C3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its C3 radial clearance ensures smooth operation, even under varying thermal conditions.

Application

Industrial Uses of 2206 E-2RS1KTN9/C3 Bearing
2206 E-2RS1KTN9/C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2206 E-2RS1KTN9/C3 Bearing works well in suspension systems, handling radial loads smoothly. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For automation equipment, 2206 E-2RS1KTN9/C3 Bearing supports robotic arms, providing reliable performance in repetitive motions. The C3 clearance allows for thermal expansion in high-speed operations.

Where Is 2206 E-2RS1KTN9/C3 Bearing Used?
You’ll often find 2206 E-2RS1KTN9/C3 Bearing in industrial fans, where its double-row design handles moderate radial loads. The lubricated construction ensures smooth rotation even under continuous use.

In household appliances like washing machines, 2206 E-2RS1KTN9/C3 Bearing reduces vibration during spin cycles. Its chrome steel rings offer durability against daily wear and tear.
