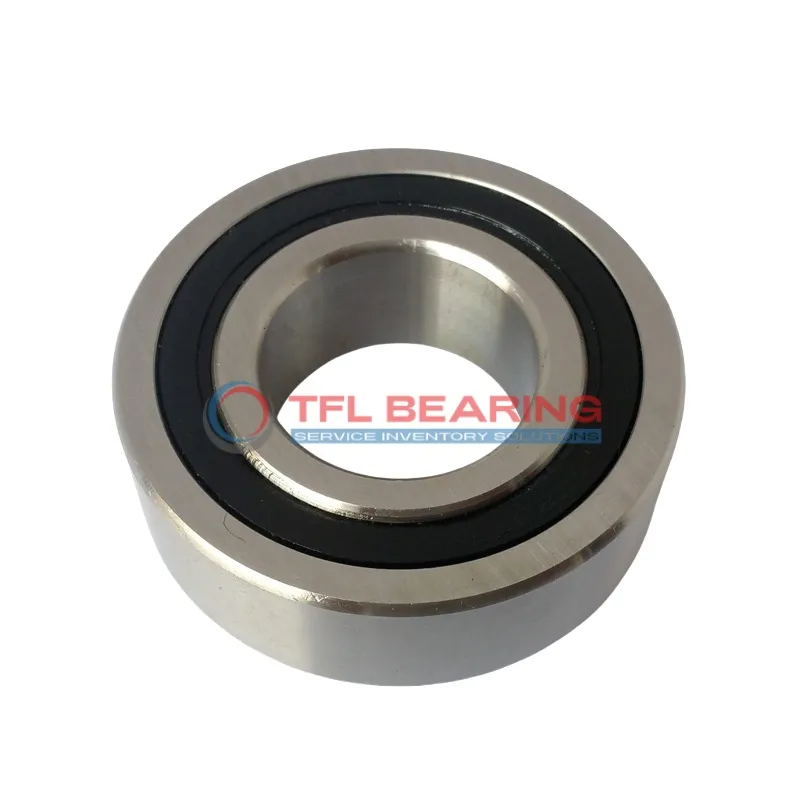

Self Aligning Ball Bearings 2206-2RS C/2

Brand: TFL Bearing Interchangeable: SKF 2206-2RS C/2 30 mm × 62 mm × 20 mm Metric Sealed
Part number: 2206-2RS C/2
Self Aligning Ball Bearings 2206-2RS C/2
In Stock
US$67.02 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.013mm to 0
Width20 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring36.7 mm
Internal Diameter On Outer Ring54.06 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,510 lbf
Static Radial Load1,046 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.26 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2206-2RS C/2 is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help manage radial loads up to 3510 lbf while spinning smoothly at 7500 RPM.

The nylon cage reduces friction, and the built-in lubrication ensures quiet operation. It can handle temperatures from -30°C to 110°C, making it versatile for various environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery with slight misalignments, such as conveyor systems or agricultural equipment.

Weighing 0.26kg, it’s a durable yet lightweight choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 2206-2RS C/2 Bearing for Precision Tasks?

2206-2RS C/2 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 3510 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide smooth operation while keeping contaminants out.
This design also helps in reducing maintenance needs over time.

With a maximum speed of 7,500 rpm, 2206-2RS C/2 Bearing balances performance and durability.
Its temperature range of -30° to 110°C ensures reliable operation in various conditions.

The precise tolerances and chamfered edges make installation straightforward.
This bearing is ideal for applications where alignment adjustments are necessary.

Application

Common Applications of 2206-2RS C/2 Bearing
2206-2RS C/2 Bearing is widely used in industrial machinery, especially in conveyor systems where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life even in dusty environments.

In automotive applications, 2206-2RS C/2 Bearing works well in wheel hubs and transmissions, thanks to its double-row construction handling radial loads efficiently. The nylon cage reduces noise, making it suitable for passenger vehicles.

For home appliances like washing machines, 2206-2RS C/2 Bearing’s lubricated design ensures smooth operation over time. Its chrome steel rings provide durability, while the sealed ends protect against moisture and detergent ingress.

Where Is 2206-2RS C/2 Bearing Used?
You’ll often find 2206-2RS C/2 Bearing in agricultural equipment, where its ability to handle misalignment and radial loads is crucial. The metric sizing makes it easy to replace in European-made machinery.

In small electric motors, 2206-2RS C/2 Bearing’s low-maintenance sealed design is a practical choice. The temperature range allows it to perform reliably in both indoor and outdoor applications.

Built for Heavy-Duty Use: 2206-2RS C/2 Bearing
2206-2RS C/2 Bearing excels in construction equipment, where its dynamic load capacity handles rough conditions. The CN radial clearance provides optimal performance under varying operational stresses.

For food processing machinery, 2206-2RS C/2 Bearing’s sealed construction prevents lubricant leakage. The chrome steel components resist corrosion, meeting hygiene standards in production environments.

Light-Duty vs Heavy-Duty: Best Uses for 2206-2RS C/2 Bearing
In light-duty applications like office printers, 2206-2RS C/2 Bearing offers quiet operation with its nylon cage. The consistent performance ensures reliable paper handling mechanisms.

For heavier uses like pump systems, 2206-2RS C/2 Bearing’s double-row design distributes loads evenly. The wide temperature range makes it adaptable to both hot and cold fluid transfer applications.
