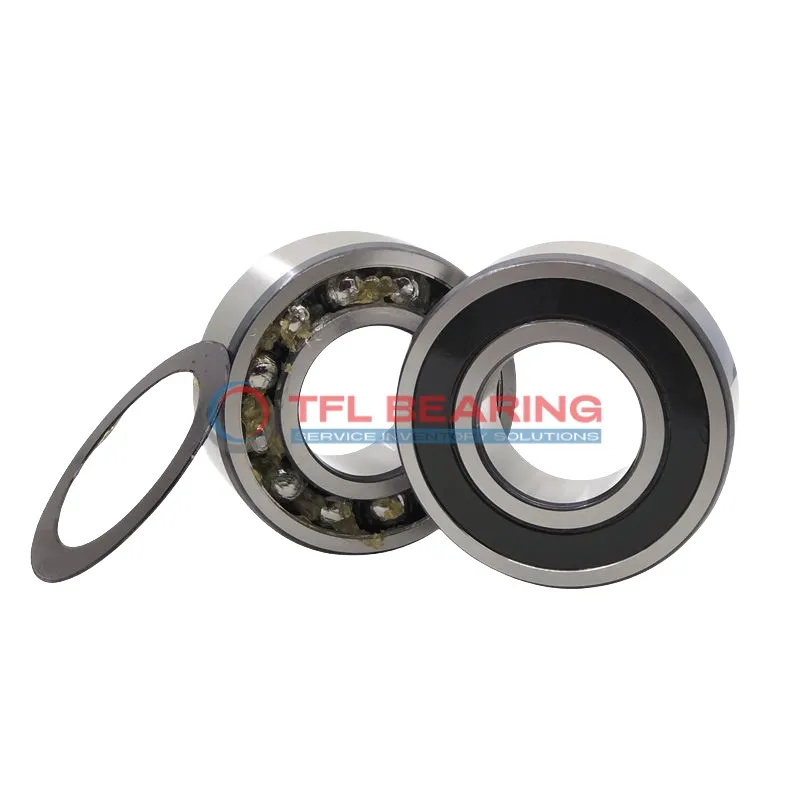

Self Aligning Ball Bearings 2205 E-2RS1TN9/C3

Brand: TFL Bearing Interchangeable: SKF 2205 E-2RS1TN9/C3 25 mm × 52 mm × 18 mm Metric Sealed
Part number: 2205 E-2RS1TN9/C3
Self Aligning Ball Bearings 2205 E-2RS1TN9/C3
In Stock
US$61.90 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia52 mm
Outer Dia Tolerance-0.013mm to 0
Width18 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring31 mm
Internal Diameter On Outer Ring46.21 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,218 lbf
Static Radial Load900 lbf
Temperature Range-30° to 110 °C
Max Speed9,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.16 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2205 E-2RS1TN9/C3 is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds up to 9000 RPM.

Its double-row design and sealed construction help maintain alignment and keep contaminants out, while the nylon cage reduces friction. The bearing is pre-lubricated for easy use and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing just 0.16kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 2205 E-2RS1TN9/C3 Bearing Reduce Friction?

2205 E-2RS1TN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.

With a dynamic radial load capacity of 3218 lbf, it handles demanding applications efficiently.
The sealed design keeps lubrication intact, further reducing wear and extending service life.

Its maximum speed of 9,000 rpm makes it suitable for high-speed operations.
The C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Industrial Uses of 2205 E-2RS1TN9/C3 Bearing
2205 E-2RS1TN9/C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2205 E-2RS1TN9/C3 Bearing is found in wheel hubs and transmissions, providing smooth rotation under radial loads. Its nylon cage reduces noise, making it ideal for passenger vehicles.

For robotics, 2205 E-2RS1TN9/C3 Bearing offers reliable performance in joint mechanisms, where precision and durability are key. The C3 clearance allows for thermal expansion in high-speed operations.

Where Is 2205 E-2RS1TN9/C3 Bearing Used?
You’ll often see 2205 E-2RS1TN9/C3 Bearing in industrial fans, where its double-row design handles both radial and axial loads. The lubricated construction ensures minimal maintenance over time.

In household appliances like washing machines, 2205 E-2RS1TN9/C3 Bearing supports the drum, offering quiet and efficient operation. The chrome steel rings provide excellent resistance to wear and tear.

Built for Heavy-Duty Use: 2205 E-2RS1TN9/C3 Bearing
2205 E-2RS1TN9/C3 Bearing is a solid choice for agricultural machinery, where rough conditions demand robust performance. The sealed design protects against dirt and moisture.

In packaging equipment, 2205 E-2RS1TN9/C3 Bearing ensures smooth operation of rotating parts. Its self-aligning capability reduces stress on adjacent components.

Automotive vs Aerospace: Applications of 2205 E-2RS1TN9/C3 Bearing
In cars, 2205 E-2RS1TN9/C3 Bearing is used in steering systems, where its radial load capacity is crucial. The metric sizing fits standard automotive designs.

For aerospace applications, 2205 E-2RS1TN9/C3 Bearing is less common but can be found in auxiliary equipment. Its temperature range suits various operational conditions.
