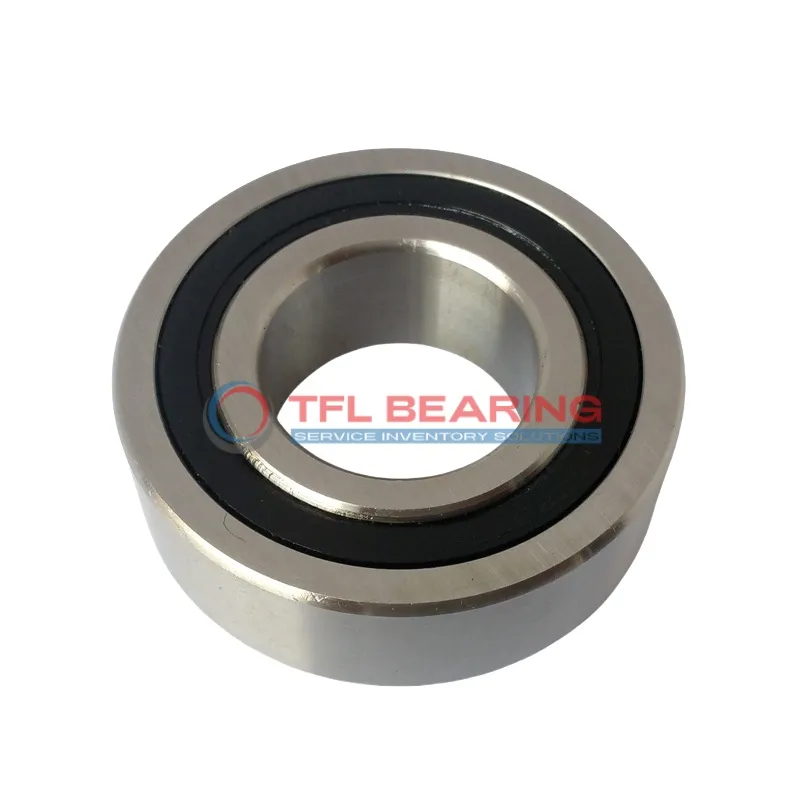

Self Aligning Ball Bearings 2205 E-2RS1KTN9

Self Aligning Ball Bearings 2205 E-2RS1KTN9

The 2205 E-2RS1KTN9 is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3218 lbf and operates smoothly at speeds up to 9000 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, ensuring reliable performance. The nylon cage reduces friction and noise, making it quieter in operation.

This bearing is pre-lubricated and works well in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, offering a practical replacement option.

Ideal for applications like conveyor systems or electric motors where slight misalignments may occur. Weighing just 0.16kg, it’s a lightweight yet durable choice for various industrial uses. Compliant with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2205 E-2RS1KTN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 31 mm
  • Internal Diameter On Outer Ring 46.21 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.16 kg
  • Price（$） 38.82
Self Aligning Ball Bearings 2205 E-2RS1KTN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 2205 E-2RS1KTN9 Bearing for Precision Tasks?

2205 E-2RS1KTN9 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3218 lbf makes it suitable for high-performance applications.

The sealed construction and nylon cage provide protection against contaminants while reducing noise.
With a maximum speed of 9,000 rpm, it offers both durability and smooth operation.

2205 E-2RS1KTN9 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its compact size and reliable design make it ideal for various industrial uses.

Application

Industrial Uses of 2205 E-2RS1KTN9 Bearing
2205 E-2RS1KTN9 Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

What Makes 2205 E-2RS1KTN9 Bearing a Preferred Choice?
In automotive applications, 2205 E-2RS1KTN9 Bearing works well in wheel hubs and transmissions, thanks to its radial load capacity. The nylon cage reduces noise, making it suitable for vehicles where quiet operation is important.

Perfect Fit for Automation: 2205 E-2RS1KTN9 Bearing
2205 E-2RS1KTN9 Bearing is ideal for robotic arms, providing smooth movement and reliability. Its double-row construction offers stability, even in high-speed operations.

Medical vs Industrial: Where 2205 E-2RS1KTN9 Bearing Excels
In medical devices like centrifuges, 2205 E-2RS1KTN9 Bearing ensures precise rotation with minimal friction. The chrome steel rings and lubricated design contribute to consistent performance in critical applications.

Light-Duty vs Heavy-Duty: Best Uses for 2205 E-2RS1KTN9 Bearing
For light-duty tasks like office printers, 2205 E-2RS1KTN9 Bearing provides reliable performance with minimal maintenance. In heavier industrial settings, it handles radial loads effectively while resisting wear.
