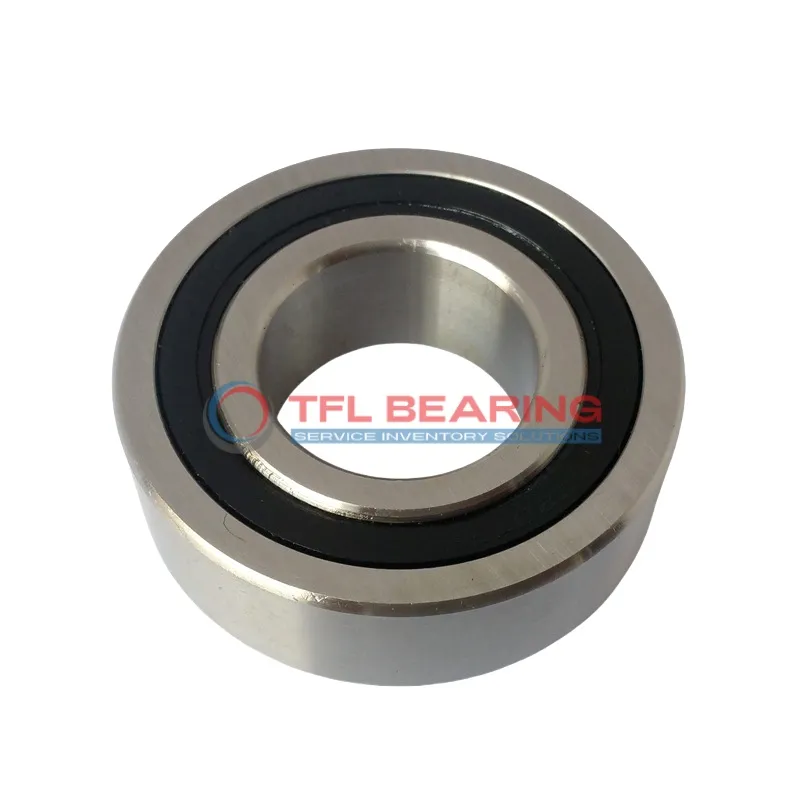

Self Aligning Ball Bearings 2205 E-2RS1KTN9/C3

Brand: TFL Bearing Interchangeable: SKF 2205 E-2RS1KTN9/C3 25 mm × 52 mm × 18 mm Metric Sealed
Part number: 2205 E-2RS1KTN9/C3
Self Aligning Ball Bearings 2205 E-2RS1KTN9/C3
In Stock
US$64.69 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia52 mm
Outer Dia Tolerance-0.013mm to 0
Width18 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring31 mm
Internal Diameter On Outer Ring46.21 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,218 lbf
Static Radial Load900 lbf
Temperature Range-30° to 110 °C
Max Speed9,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.16 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2205 E-2RS1KTN9/C3 is a self-aligning ball bearing with a 25mm tapered bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds up to 9000 RPM.

Its double-row design and sealed construction keep dirt out while the nylon cage reduces friction for quieter performance. The bearing is pre-lubricated and works in temperatures from -30°C to 110°C.

This model aligns itself to minor shaft misalignments, making it forgiving in less precise setups. It’s interchangeable with SKF bearings, ideal for fans, conveyors, or agricultural machinery.

Weighing just 0.16kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Features

Why Choose 2205 E-2RS1KTN9/C3 Bearing for Precision Tasks?

2205 E-2RS1KTN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3218 lbf makes it suitable for high-performance applications.

The sealed design and nylon cage provide excellent protection against contaminants, enhancing durability.
With a maximum speed of 9,000 rpm, it offers reliable operation in various conditions.

2205 E-2RS1KTN9/C3 Bearing’s C3 radial clearance allows for thermal expansion, maintaining performance under temperature variations.
Its tapered bore design ensures secure fitting, reducing the risk of misalignment.

Application

Common Applications of 2205 E-2RS1KTN9/C3 Bearing
2205 E-2RS1KTN9/C3 Bearing is widely used in industrial equipment like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2205 E-2RS1KTN9/C3 Bearing is often found in wheel hubs and transmissions, providing smooth rotation under radial loads. Its nylon cage reduces friction, making it energy-efficient for modern vehicles.

For automation systems, 2205 E-2RS1KTN9/C3 Bearing supports robotic arms and assembly lines, where precision and reliability are key. The C3 clearance allows for thermal expansion in high-speed operations.

In household appliances like washing machines, 2205 E-2RS1KTN9/C3 Bearing offers quiet and durable performance. The chrome steel construction ensures it can handle daily wear and tear with ease.
