Self Aligning Ball Bearings 2204-2RS C/3

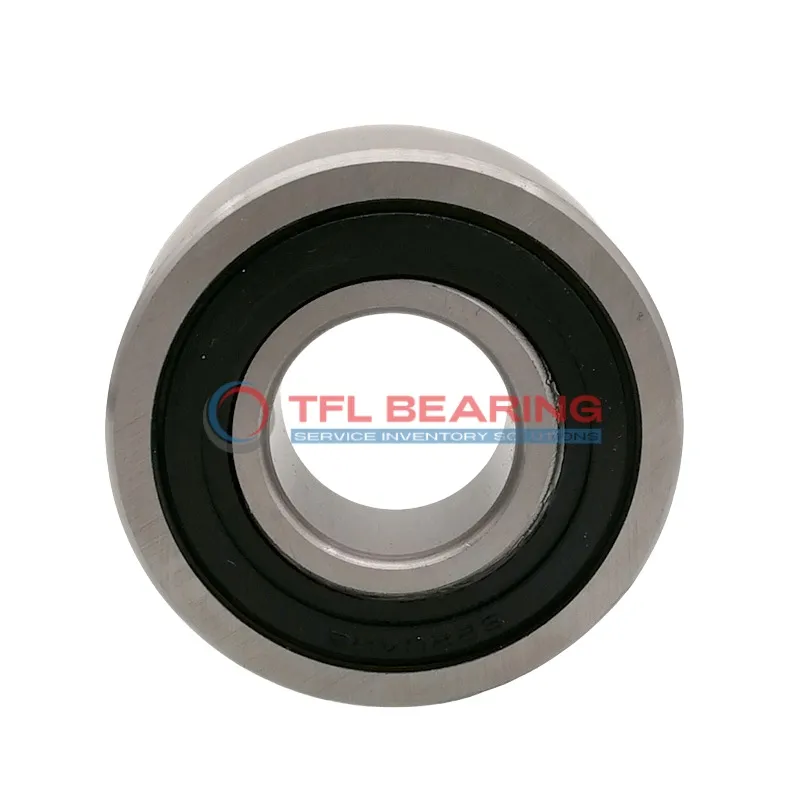

Self Aligning Ball Bearings 2204-2RS C/3

The 2204-2RS C/3 is a self-aligning ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 2858 lbf while spinning smoothly at 10,000 RPM.

The nylon cage reduces friction, and the built-in lubrication ensures quiet operation. It works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like conveyor systems or electric motors where slight misalignment might occur.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2204-2RS C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 25.9 mm
  • Internal Diameter On Outer Ring 41.23 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2858 lbf
  • Static Radial Load 765 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.14 kg
  • Price（$） 33.37
Self Aligning Ball Bearings 2204-2RS C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2204-2RS C/3 Bearing for Precision Tasks?

2204-2RS C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 2858 lbf makes it suitable for high-performance applications.

The sealed construction and nylon cage provide protection against contaminants while maintaining smooth operation.
With a maximum speed of 10,000 rpm, it offers both durability and efficiency.

2204-2RS C/3 Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its lubricated design reduces maintenance needs, ensuring long-term reliability.

Application

Common Applications of 2204-2RS C/3 Bearing
2204-2RS C/3 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2204-2RS C/3 Bearing fits well in steering columns and suspension systems, thanks to its radial load capacity and smooth operation. The nylon cage reduces noise, making it ideal for passenger vehicles.

For home appliances like washing machines, 2204-2RS C/3 Bearing’s durability and sealed construction prevent water ingress, ensuring reliable performance over time. Its compact size also makes it suitable for space-constrained designs.

In automation equipment, 2204-2RS C/3 Bearing supports robotic arms and assembly lines, where its ability to handle radial loads and misalignments improves efficiency. The lubricated design ensures consistent performance even in high-speed operations.
