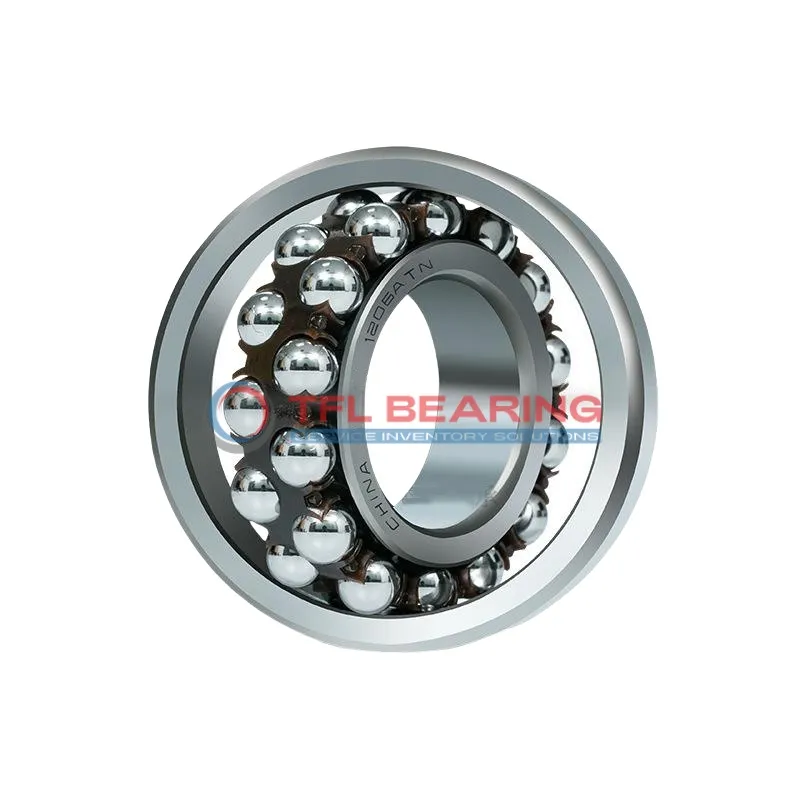

Self Aligning Ball Bearings 2203-TVH-C3

Self Aligning Ball Bearings 2203-TVH-C3

The 2203-TVH-C3 is a self-aligning ball bearing with a 17mm bore and 40mm outer diameter, designed for radial loads. Its compact size (17mm x 40mm x 16mm) makes it suitable for tight spaces.

This double-row bearing handles radial loads up to 1989 lbf and spins smoothly at speeds up to 12,000 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Made from chrome steel with a nylon cage, it offers durability and quiet operation. The C3 radial clearance allows for slight misalignment, ideal for applications where shaft deflection may occur.

Perfect for use in electric motors, fans, or conveyor systems where reliability is key. Compliant with RoHS and REACH standards, it weighs just 0.089kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2203-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 21.1 mm
  • Internal Diameter On Outer Ring 34.98 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1989 lbf
  • Static Radial Load 495 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.089 kg
  • Price（$） 24.2
Self Aligning Ball Bearings 2203-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Is 2203-TVH-C3 Bearing Engineered for Reliability?

2203-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 1989 lbf makes it suitable for various industrial applications.
The sealed construction and nylon cage help maintain smooth operation while reducing contamination risks.
With a maximum speed of 12,000 rpm, it offers both durability and efficiency in demanding conditions.

Application

Industrial Uses of 2203-TVH-C3 Bearing
2203-TVH-C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

How Does 2203-TVH-C3 Bearing Improve Performance?
In electric motors, 2203-TVH-C3 Bearing reduces friction and noise, thanks to its nylon cage and smooth chrome steel balls. The C3 clearance allows for thermal expansion, making it suitable for variable-speed applications.

Built for Heavy-Duty Use: 2203-TVH-C3 Bearing
This bearing handles radial loads in agricultural machinery, where rough conditions demand durability. Its double-row construction provides added stability under heavy loads.

Automotive vs Aerospace: Applications of 2203-TVH-C3 Bearing
In automotive wheel hubs, 2203-TVH-C3 Bearing offers reliable performance, while in aerospace actuators, its precision ensures smooth operation. The metric sizing fits both industries’ standards.

Perfect Fit for Automation: 2203-TVH-C3 Bearing
2203-TVH-C3 Bearing works well in robotic arms, where its self-aligning capability adapts to dynamic movements. The lubricated design minimises maintenance needs in continuous operation.
